ultrasonic cavitation reactor cleaning machine 28khz/40khz

2019-10-12 16:56 admin
ultrasonic cavitation reactor cleaning machine 28khz/40khz
Ultrasound refers to electromagnetic waves with frequencies ranging from 20 kHz to 50 MHz. It is a mechanical wave that needs energy carrier - medium to transmit. There exists a period of alternation of positive and negative pressure in the transmission process of ultrasound. In the positive phase, the medium molecules are squeezed to increase the original density of the medium. In the negative phase, the medium molecules are sparse and discrete, and the medium density decreases. That is to say, ultrasound can not polarize the molecules in the sample, but cause acoustic cavitation between the solvent and the sample, leading to the formation, growth and explosive compression of bubbles in the solution, thus dispersing the solid sample, increasing the contact area between the sample and the extraction solvent, and increasing the mass transfer rate of the target from solid to liquid. In industrial applications, the use of ultrasound for cleaning, drying, sterilization, atomization and non-destructive testing is a very mature and widely used technology.

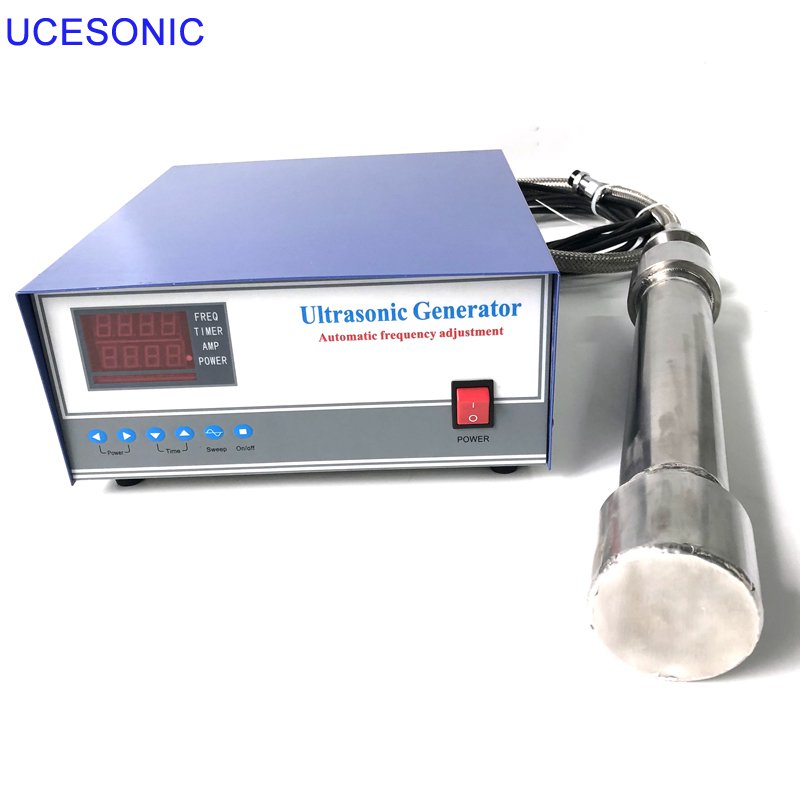

Ultrasound vibrating rod generates radial vibration of rod body through high-power and large-amplitude transducer. Ultrasound is generated uniformly at 360 degrees near the vibrating rod. Its amplitude is between the ultrasonic cleaner and the processor. Therefore, the direction of use is flexible. The ultrasonic vibrating rod can be used for cleaning any tank body, and can be placed freely in any position of the cleaning tank. The occupied volume space is very small, and it can be used very flexibly. It can be used in the reactor to accelerate dissolution, reaction and prevent scaling on the inner wall.


Cleaning features:

(1) It is applicable to any fluid without restriction and has a wide range of applications.
(2) Scale removal and scale prevention are carried out simultaneously, which can achieve the effect of one-time scale removal and long-term scale prevention.
(3) The equipment is small in size, easy to install and operate.
(4) The anti-scaling and descaling effect is obvious, the cleaning efficiency is high, the object being cleaned is consistent as a whole, and the equipment is always carried out in an ideal state, which reduces the energy loss of enterprises and improves the economy and security of equipment operation.
(5) Ultrasound cell breaker is characterized by continuous online operation, high automation, reliable performance, no environmental pollution and low operating cost.
(6) Its amplitude is between the ultrasonic cleaner and the processor, so the direction of use is flexible. Ultrasound cell breaker can be used for cleaning any grooved body. It can be placed freely in any position of the groove. It occupies very small volume space and can be used very flexibly.
Tubular Equipment
Type
Tubular Transducer
Type
Frequency
(KHz)
Ultrasound
Output(W)
Total Length
(mm)
Diameter
(mm)
Static Capacity
(pF±10%)
UCE-US1

US-61

 25-27
1000

500

Φ50-55

68000

UCE-US5

US-25

25-27

1500

850
Φ50-55

68000

UCE-US6

US-16

25-27

2000

1100
Φ50-55

132000
ultrasonic cavitation reactor cleaning machine 28khz/40khz
ultrasonic cavitation reactor cleaning machine 28khz/40khz

ultrasonic cavitation reactor cleaning machine 28khz/40khz
