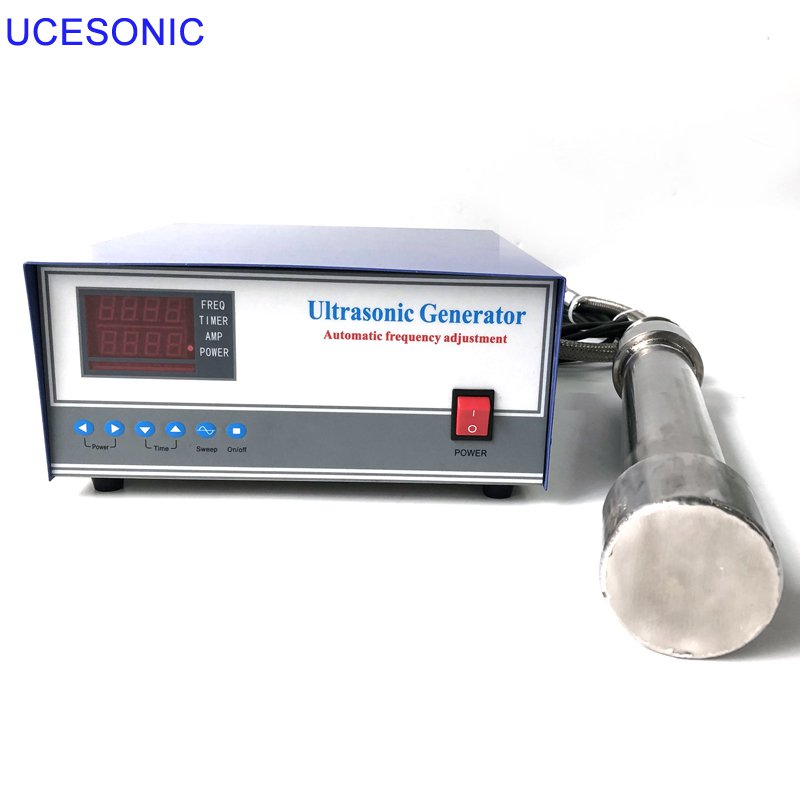

ultrasonic reactor cleaner machine 28khz/40khz 1000Watt

2019-10-12 14:05 admin
ultrasonic reactor cleaner machine 28khz/40khz 1000Watt
Product performance:

Imported components and stainless steel sheets are adopted, which are beautiful and durable.
The cleaning trough is equipped with heating and temperature control devices, and the temperature is controlled at 30-110 degrees C..
The splitting design of the cleaning tank and the ultrasonic generator is easy to operate.
Ultrasound vibration modes can be selected, such as bottom vibration, side vibration and multi-sided vibration. Different vibration modes are suitable for different cleaning conditions.

Applications:

Used for cleaning circuit boards, bearing parts, optical lenses, motorcycle parts, ion plating parts, electroplating parts, audio headers, clock parts, semiconductor wafers, silicon film of solar cells, magnetic materials, polyester spinning board, filter core, precision metal parts, medical equipment, medicine and other industries.
Tubular Equipment
Type
Tubular Transducer
Type
Frequency
(KHz)
Ultrasound
Output(W)
Total Length
(mm)
Diameter
(mm)
Static Capacity
(pF±10%)
UCE-US1

US-61

 25-27
1000

500

Φ50-55

68000

UCE-US5

US-25

25-27

1500

850
Φ50-55

68000

UCE-US6

US-16

25-27

2000

1100
Φ50-55

132000
ultrasonic reactor cleaner machine 28khz/40khz 1000Watt
ultrasonic reactor cleaner machine 28khz/40khz 1000Watt

ultrasonic reactor cleaner machine 28khz/40khz 1000Watt
