Ultrasonic Spot Welding Machine for HDPE PE PP PVC material

2019-08-29 11:37 admin
Ultrasonic Spot Welding Machine for HDPE PE PP PVC material

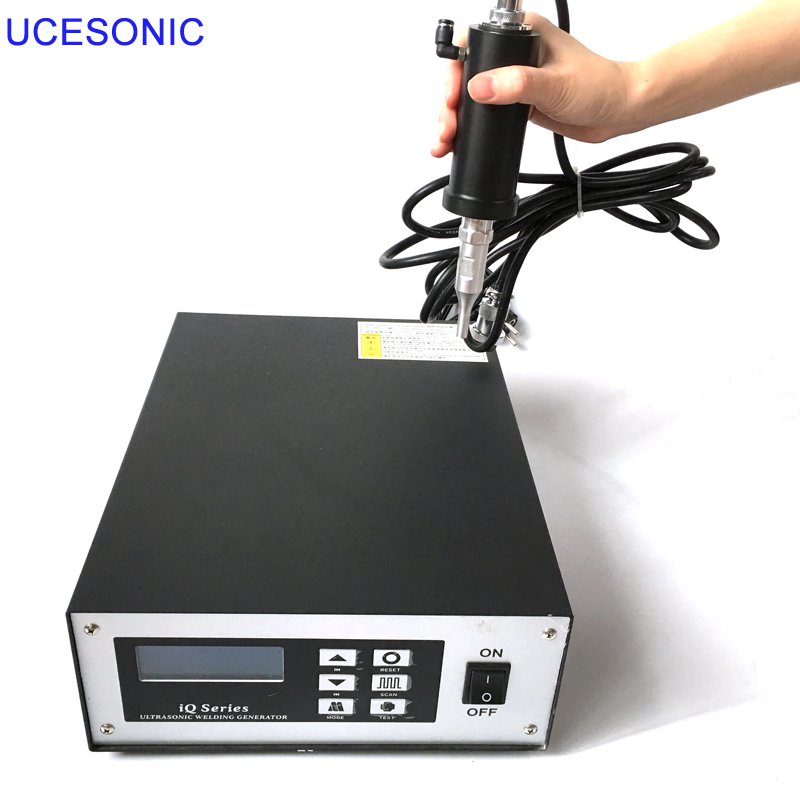

The basic structure is an ultrasonic transducer, a horn, a tool head, a housing and a driving power supply. Ultrasound driving power converts municipal electricity into high frequency and high voltage AC current, which is transmitted to the ultrasonic transducer. Ultrasound transducer is actually equivalent to an energy converter device, which can convert the input electric energy into mechanical energy, that is, ultrasound. Its form of expression is that the transducer makes high-frequency back-and-forth telescopic motion in the longitudinal direction. The frequency of the telescopic motion is equal to the frequency of the AC current supplied by the driving power supply. The function of the horn is to fix the whole ultrasonic vibration system and to amplify the output amplitude of the transducer. On the one hand, the tool head enlarges the amplitude further, on the other hand, the workpiece outputs ultrasonic wave.
Type power
(W)
Frequency Welding time Contains
UCE-HH300W 300W 20khz,28khz,30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-HH500W 500W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH900W 900W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1000W 1000W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1200W 1200W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
Type power
(W)
Frequency Welding time Contains
UCE-HH300W 300W 20khz,28khz,30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-HH500W 500W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH900W 900W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1000W 1000W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1200W 1200W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
Ultrasonic Spot Welding Machine for HDPE PE PP PVC material

Ultrasonic Spot Welding Machine for HDPE PE PP PVC material
