ultrasonic transducer for industry ultrasonic vibration sieve

2019-06-11 13:33 admin

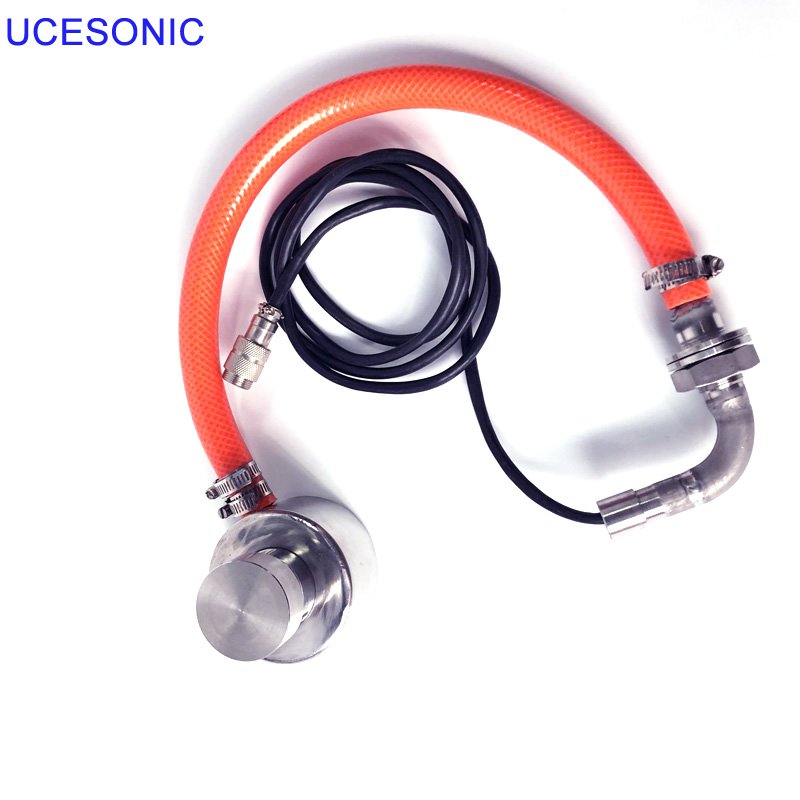

ultrasonic transducer for industry ultrasonic vibration sieve
There is a part of the ultrasonic vibration screen called transducer. Some details of its use need attention. The main methods of using the transducer of the ultrasonic vibration screen are as follows:
Firstly, the ultrasonic vibration transducer is locked on the grid which is attached to the net (the locking force is 40-50 kg), and then the ultrasonic grid is loaded into the vibration screen.
(2) The power supply of the ultrasonic vibrating screen and the rotary vibrating screen are separately supplied, the rotary vibrating screen is three-phase power supply, and the power supply of the ultrasonic vibrating screen is single-phase power supply, both of which need reliable grounding.
The OUT of the rear panel of the power supply of the ultrasonic vibration screen is the output of the ultrasonic wave. Please insert the ultrasonic HF connection wire into the lock and check the reliable link.
The other end of the aviation plug of the HF link cable is connected with the transducer, and the seal is securely secured.
(4) Connect the power supply of the ultrasonic vibration screen and the ultrasonic HF link cable, and open the switch of the ultrasonic power supply after checking correctly.
With the sound of "droplets", the power supply of the ultrasonic vibration screen is activated, and the display window shows "vibration amplitude XXX micron" and enters the self-checking state. By adjusting the amplitude knob, the vibration amplitude can be adjusted.
Type Frequency(KHz) Input Power(W)
UCE-UVT-33 33KHZ 100W
UCE-UVT-35 35KHZ 100W
ultrasonic transducer for industry ultrasonic vibration sieve

ultrasonic transducer for industry ultrasonic vibration sieve
