ultrasonic vibration direction transducer 33khz 100W

2019-06-11 13:39 admin
ultrasonic vibration direction transducer 33khz 100W
The ultrasonic device consists of the power supply of the ultrasonic vibration screen and the ultrasonic vibration transducer. The function of the power supply of the ultrasonic vibration screen is to convert the low frequency current into the high frequency current, so that the material can be screened by the high frequency vibration.

For the ultrasonic vibration screen, the ultrasonic device is the most important component and the core of the ultrasonic vibration screen.

The so-called ultrasonic transducer is a kind of piezoelectric transducer. The piezoelectric transducer is a transducer made of the positive and negative piezoelectric effect of piezoelectric materials. The transducer, as its name implies, is a device capable of energy conversion.

Composition of transducer for ultrasonic vibration screen:

The utility model is composed of a pressure cap, a piezoelectric ceramic, an electrode sheet, a radiator head, a prestressing screw and an insulating sleeve.
Type Frequency(KHz) Input Power(W)
UCE-UVT-33 33KHZ 100W
UCE-UVT-35 35KHZ 100W

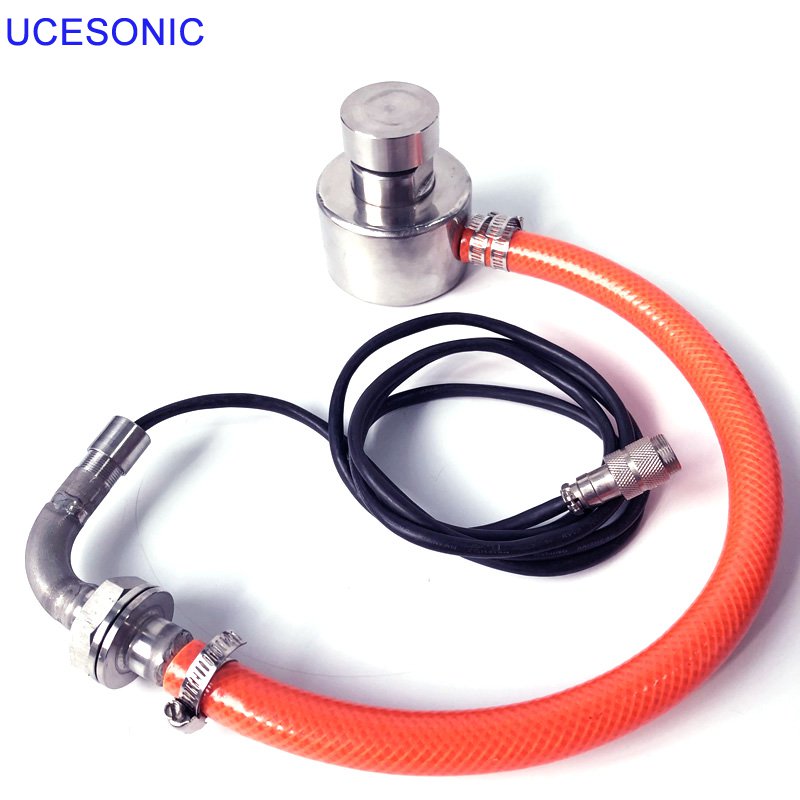

ultrasonic vibration direction transducer 33khz 100W

ultrasonic vibration direction transducer 33khz 100W
