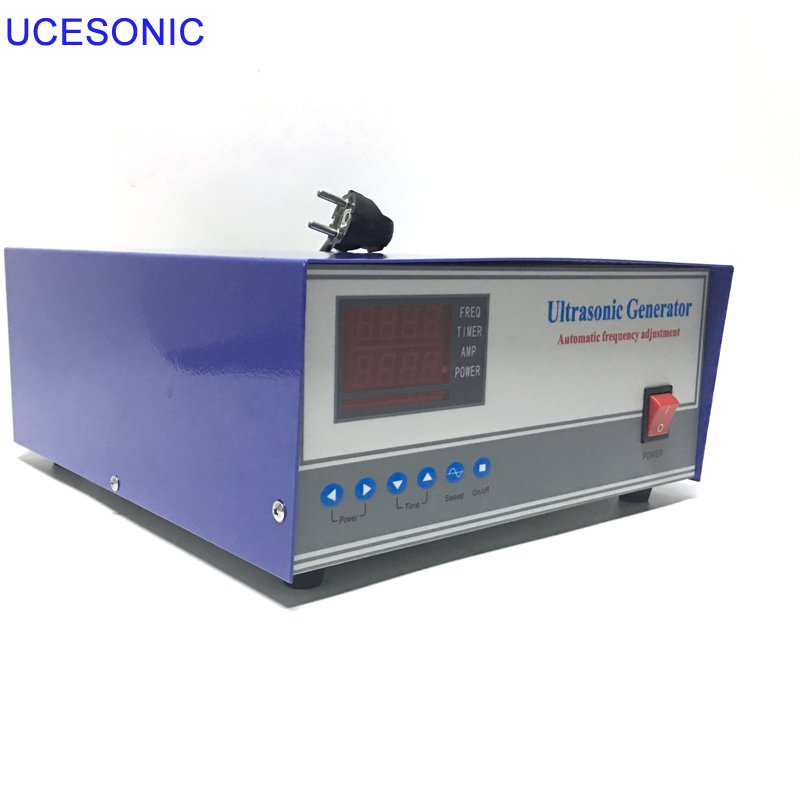

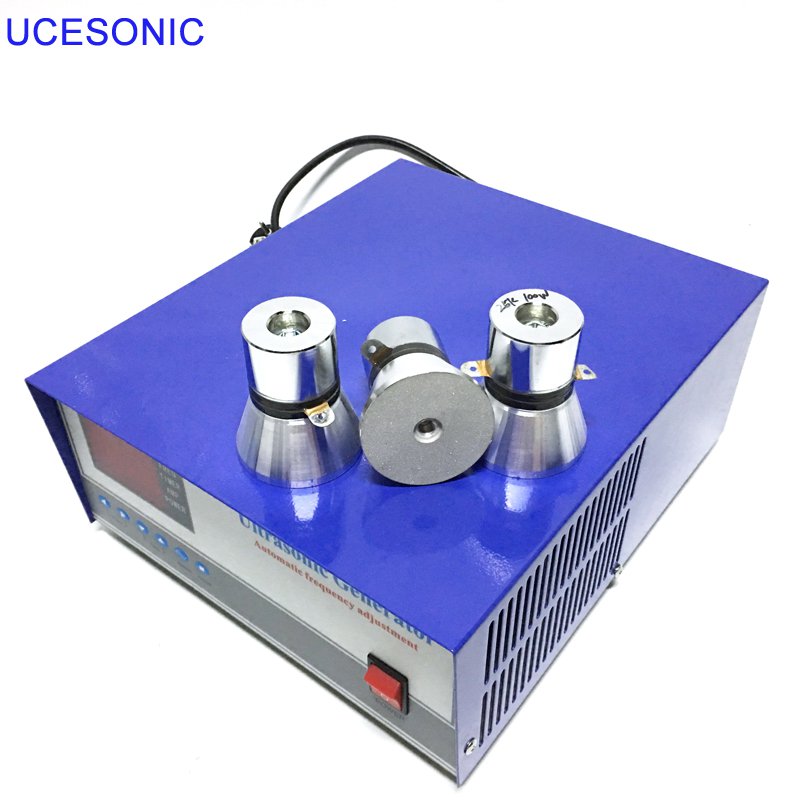

Frequency Adjustment Ultrasonic Generator for cleaning

2019-05-24 14:56 admin
Frequency Adjustment Ultrasonic Generator for cleaning
Standard ultrasonic generator has the advantages of high efficiency, stability, simple operation and maintenance.
Leading technology
1. Digital control technology, perfect circuit design, stable power output.
2. Excellent frequency control technology, high output efficiency and stability. Even if the impedance changes due to the changes of liquid temperature, depth, type, cleaning material, negative pressure state and other loads, and even the voltage of the power supply changes, stable power can be supplied.
3. Automatic broadband scanning can choose different bandwidth to eliminate standing wave, improve the energy distribution of ultrasonic wave and eliminate the blind area of cleaning. It has special advanced functions such as frequency regulation and frequency compensation.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
