High Frequency Digital Ultrasonic generator 54khz/80khz

2019-05-24 16:44 admin

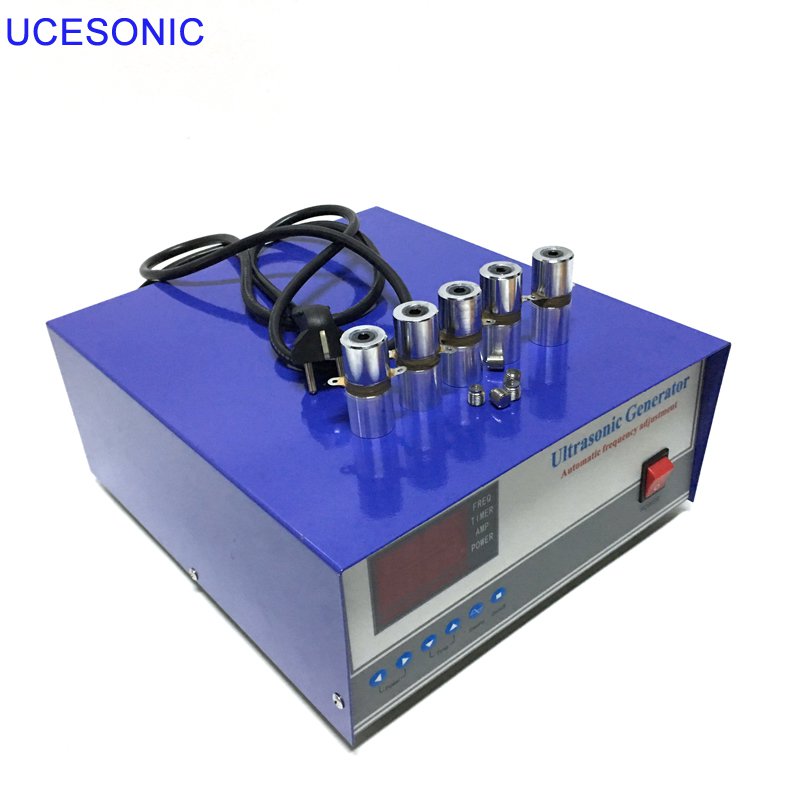

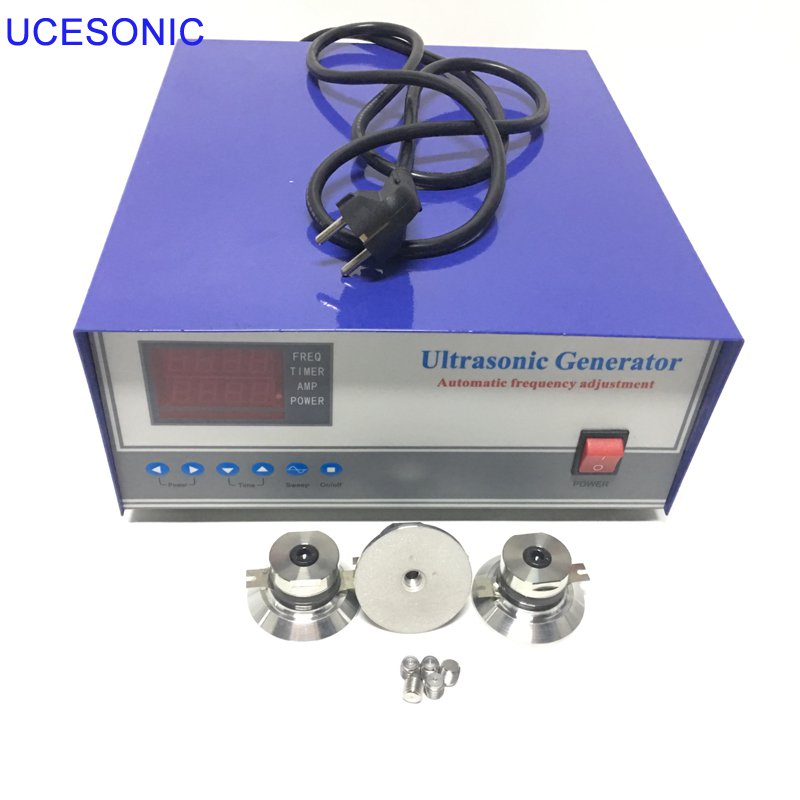

High Frequency Digital Ultrasonic generator 54khz/80khz
Ultrasound power supply is usually called the source of ultrasonic wave, and the ultrasonic generator is an important part of high-power ultrasonic system. Its function is to convert electric energy into high frequency alternating current signal matching with ultrasonic transducer and drive the ultrasonic transducer to work.

The ultrasonic generator produced by our company has the characteristics of compact structure, convenient installation, simple operation and high cost performance. The ultrasonic generator can automatically, quickly, accurately and continuously perform the ultrasonic driving work.

The ultrasonic generator generates a signal of a specific frequency, which can be either a sinusoidal signal or a pulse signal. This specific frequency is the working frequency of the transducer.
Ultrasound equipment commonly used in the frequency of 20 KHz, 25 KHz, 28 KHz, 33 KHz, 40 KHz, 60 KHz, 80 KHz, 100 KHz or more has not yet been widely used.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
High Frequency Digital Ultrasonic generator 54khz/80khzHigh Frequency Digital Ultrasonic generator 54khz/80khz
