mechanical ultrasonic generator Industry Cleaning

2019-05-20 12:31 admin
mechanical ultrasonic generator Industry Cleaning

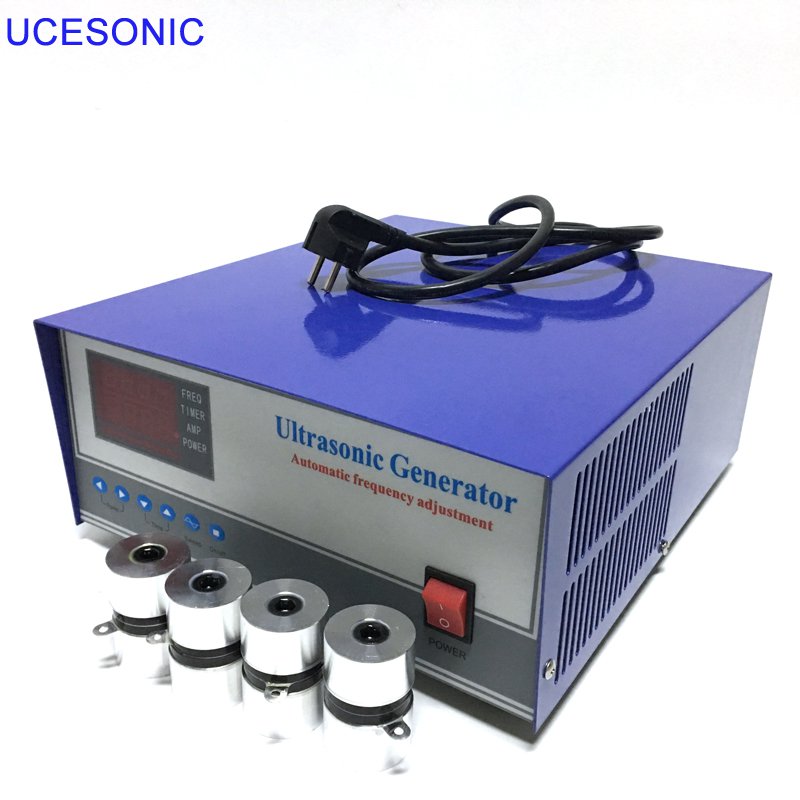

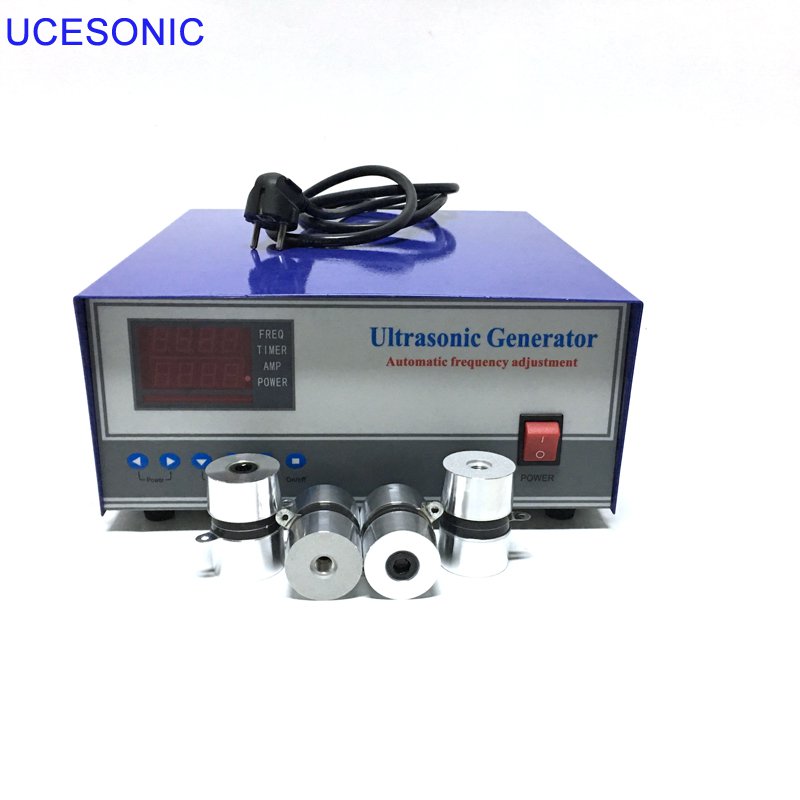

The main performance characteristics of the ultrasonic generator (ultrasonic power supply):

The power and frequency can be adjusted steplessly, so that the output matching effect can be achieved and the resonant working efficiency is higher. Using advanced micro-computer control technology and new circuit design concept, a new generation of multi-functional super
Special power source for acoustic cleaning machine. The source and control part of the signal generator adopts the digital frequency synthesis technology controlled by a microcomputer. The digital ultrasonic power can be continuously adjusted and used more flexibly. Power is stronger and more efficient. It has perfect protection function: overheat protection and overcurrent protection, and it works more reliably. Four-bit timer, precise time control to seconds, to ensure the quality of your work

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
