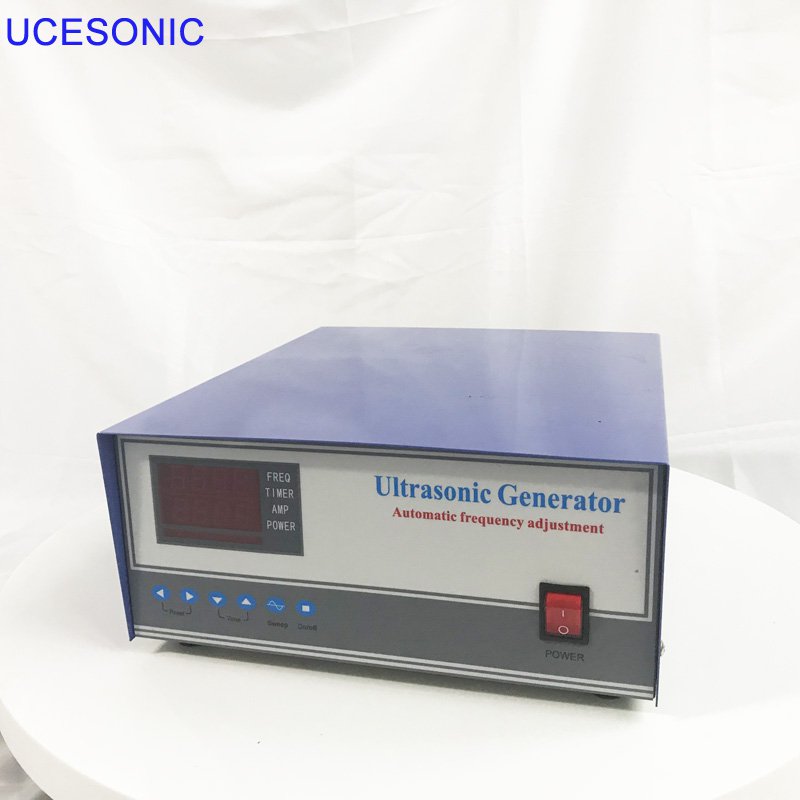

multifrequency ultrasonic power generator for industry cleaning

2019-05-25 11:31 admin
multifrequency ultrasonic power generator for industry cleaning
Multi-frequency ultrasonic generator function:

Automatic frequency tracking, phase angle control, high output efficiency and stability. Even if the impedance changes due to the changes of the liquid temperature, depth, type, cleaning material, negative pressure state and other loads, and even the voltage of the power supply changes, it can also provide the power of temperature. Manual frequency mode selection, users can choose according to different needs. Timing mode selection, users can choose time mode according to different products.
The output power can be adjusted and the cleaning time can be set arbitrarily to meet the needs of different products.

Frequency scanning can choose different bandwidth and scanning frequency to remove standing wave, improve the energy distribution of ultrasound and remove the cleaning blind area.

GF intelligent high and low voltage circuit is completely isolated, security assurance, strong anti-interference ability. Safety performance protection, when transducer abnormal (short circuit or open circuit), excessive output power abnormal, temperature rise, the protection system will automatically stop protection.

Efficient and unique cooling duct, anti-corrosion design, suitable for long-term work in humid and corrosive environment. Various parameters of carrier frequency and sweep frequency can be adjusted for different products by changing software.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
