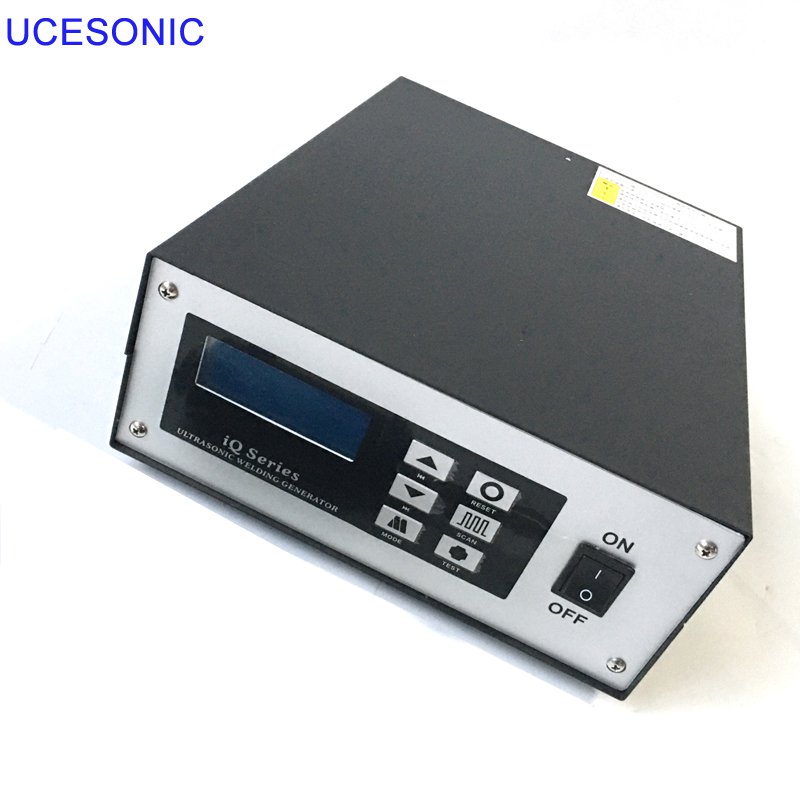

surgical masks Ultrasonic Welding generator 2000W/15khz/20khz
The ultrasonic vibration system of the special ultrasonic system of the mask machine can output the ultrasonic vibration energy, which can be used in many applications; the system needs to cooperate with other mechanical units such as action and pressure to complete the welding task; with fixed flange, the installation is simple; when the system works, there is external switch signal to trigger the system, the system completes a welding process according to the preset time, and the program controls the electricity The road is equipped with delay time, fusion time, pressure holding time and demoulding vibration time, with time adjustment accuracy of 0.01s; it can work intermittently or continuously;
Performance introduction of special ultrasonic system for mask machine:
1. Intelligent
ultrasonic generator, digital circuit design, automatic scanning frequency, without manual adjustment;
2. Frequency, power, current LCD display, ultrasonic amplitude 50% - 100% adjustable;
3. The
ultrasonic transducer is assembled with Japanese original piezoelectric ceramic chip, with strong and reliable power;
4. The system is equipped with multiple detection protection lines. When the output cable is open, the transducer and the mold are out of the frequency range, etc., the overload protection line automatically cuts off the
ultrasonic power supply and buzzes the alarm;
Type |
Power(W) |
Frequency (KHz) |
Voltage |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
UCE-WTI-100W |
100W |
28khz/40khz |
110V or220V |
UCE-WTI-300W |
300W |
28khz/40khz |
110V or220V |
UCE-WTI-500W |
500W |
15KHz/20khz/28khz/40khz |
110V or220V |
UCE-WTI-900W |
900W |
15KHz/20khz/28khz |
110V or220V |
UCE- WTI-1500W |
1500W |
15KHz/20khz |
110V or220V |
UCE- WTI-1800W |
1800W |
15KHz/20khz |
220V |
UCE- WTI-2000W |
2000W |
15KHz/20khz |
220V |
UCE- WTI-2600W |
2600W |
15KHz |
220V |
UCE- WTI-3200W |
3200W |
15KHz |
220V |
UCE- WTI-4200W |
4200W |
15KHz |
220V |
surgical masks Ultrasonic Welding generator 2000W/15khz/20khz
