sweep ultrasonic generator 28khz/40khz for cleaning

2019-05-21 11:15 admin

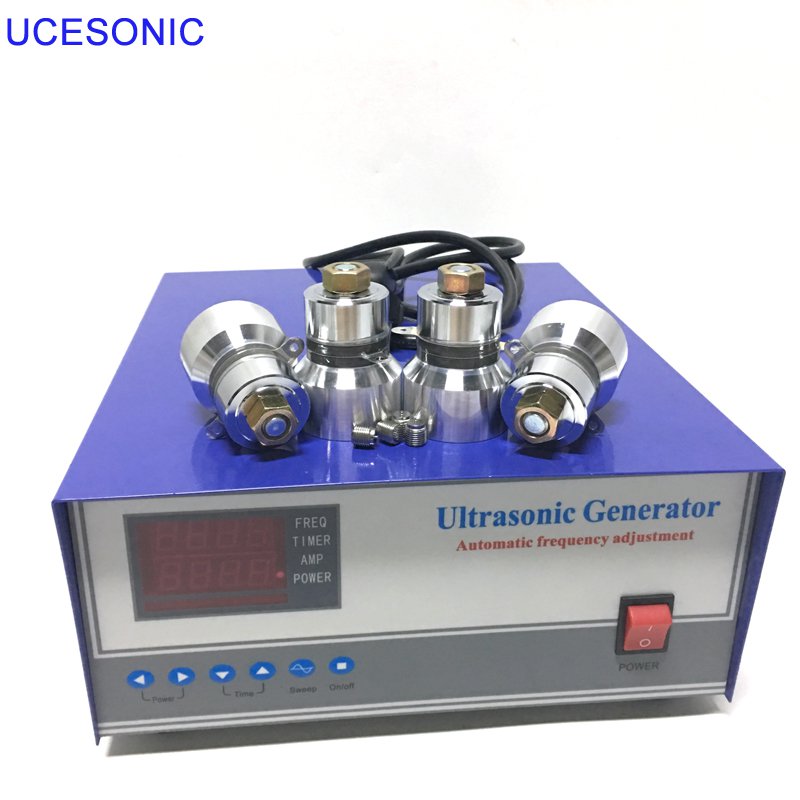

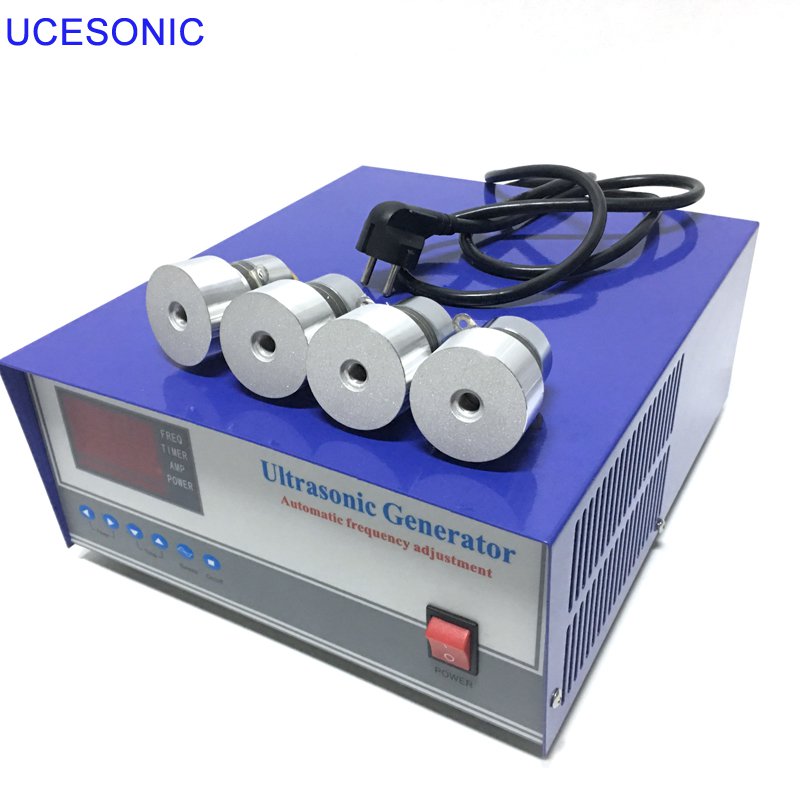

sweep ultrasonic generator 28khz/40khz for cleaning
The main performance characteristics of the ultrasonic generator (ultrasonic power supply):

The power and frequency can be adjusted steplessly, so that the output matching effect can be achieved and the resonant working efficiency is higher. Using advanced micro-computer control technology and new circuit design concept, a new generation of multi-functional super
Special power source for acoustic cleaning machine. The source and control part of the signal generator adopts the digital frequency synthesis technology controlled by a microcomputer. The digital ultrasonic power can be continuously adjusted and used more flexibly. Power is stronger and more efficient. It has perfect protection function: overheat protection and overcurrent protection, and it works more reliably. Four-bit timer, precise time control to seconds, to ensure the quality of your work

At the same time, it has all the functions of the 2012 digital display machine:
1. Using the technology of computer control and digital frequency synthesis, the frequency can be automatically tracked and adjusted.
2. Digital ultrasound power, continuous adjustable, more flexible and convenient to use;
3. Design a timing system with digital display and adjustable working time.
4. It has the function of sweeping frequency, the speed and width of sweeping frequency are adjusted digitally, and the steel plate is effectively protected.
5. Setting up PLC remote control interface to facilitate the connection with other control equipment;
6. Constant power output stabilization technology, not affected by voltage and load, protects equipment;
7. Full touch humanized key control, easy to debug and operate.
8. More efficient, more environmentally friendly, with more than 98% useful power output.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
