ultrasonic bath generator for parts cleaning 28khz/40khz

2019-05-23 14:04 admin

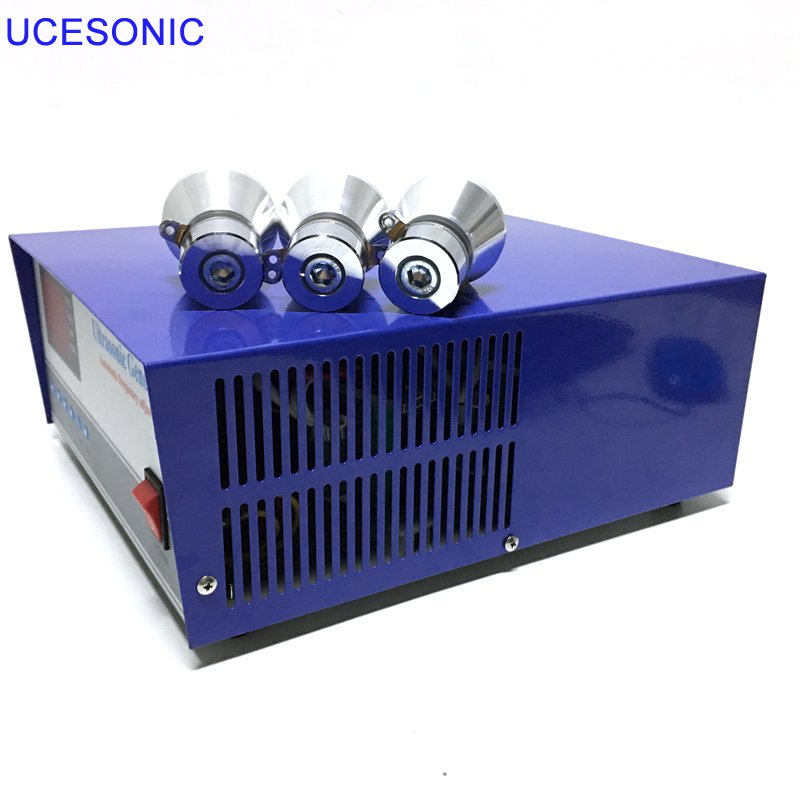

ultrasonic bath generator for parts cleaning 28khz/40khz
With the rapid development of electronic technology, the replacement and renewal of ultrasonic generators are flourishing. Our company's newly designed series of ultrasonic generator is another wonderful flower blooming in the hundred gardens of generator. In addition to inheriting the common advantages of the current industry ultrasonic generator: powerful power, stable operation, simple mode, the generator adopts dust-proof and moisture-proof structure in the main assembly; a powerful switch driver chip is installed in the circuit; intelligent control such as under-load alarm and over-current fast protection is realized. It can easily adjust the power output, sweep frequency, alarm and control the distance of the generator.

ultrasonic generator Main functions:
(1) The output power can be adjusted: the starting point of output power is 20%, and the following can be adjusted in eight stages, corresponding to 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100% with green LED respectively.
(2) Sweeping: It can make the output power strong, uniform and stable.
(3) Alarm: overcurrent, overheat protection, output under-load alarm, output open-circuit alarm.
(4) Remote control: Provide four-bit terminal remote fault display, switch control.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
ultrasonic bath generator for parts cleaning 28khz/40khz

ultrasonic bath generator for parts cleaning 28khz/40khz
