ultrasonic generator power control box for cleaning

2019-05-25 11:02 admin
ultrasonic generator power control box for cleaning
In the design of ultrasonic power source, the matching design of generator and transducer is very important, which largely determines whether the ultrasonic equipment can work normally and efficiently. The matching of ultrasonic generator and transducer includes two aspects: impedance matching and tuning matching. Impedance matching makes the impedance of the transducer transform into the optimal load, that is to say, it plays the role of impedance transformation. Tuning matching can make the voltage and current of the two ends of the transducer in phase, so that the efficiency is the highest. At the same time, series resonance can improve the voltage of the two ends of the ultrasonic transducer, which is conducive to exciting the piezoelectric transducer.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

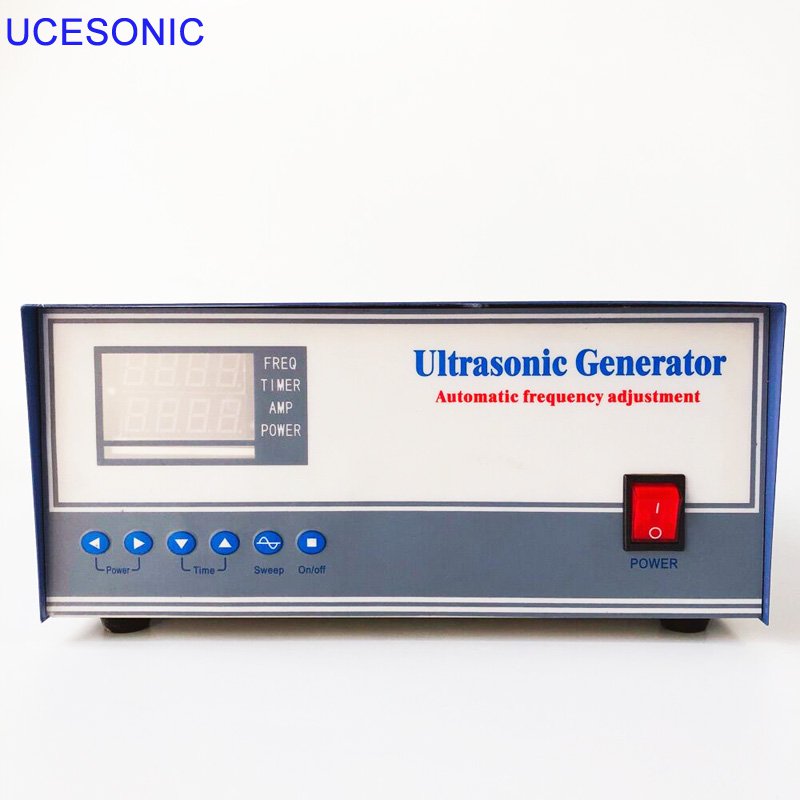

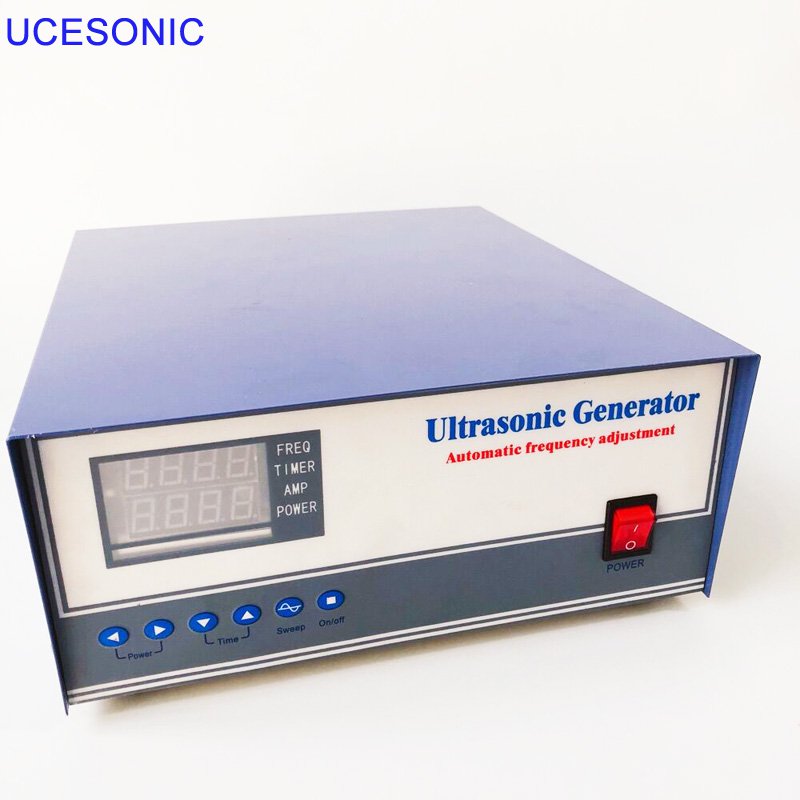

ultrasonic generator power control box for cleaningultrasonic generator power control box for cleaning

ultrasonic generator power control box for cleaning
