ultrasound source generator for parts cleaner

2019-05-20 12:48 admin
ultrasound source generator for parts cleaner
The company independently developed ultrasonic cleaning equipment, ultrasonic generator frequency 20KHZ~42KHZ stepless adjustable, precision to 0.1KHZ continuous adjustable, can make output matching to state, work efficiency is higher; can improve the performance of similar products 50%, extend the service life of transducer more than twice, constant current regulation and frequency tracking, system tracking frequency size can be set, detuning automatic and rapid tuning. Vibration function and working parameters are displayed digitally. Users can accurately control the output power by preset current value. The load sustainability rate reaches more than 95%.

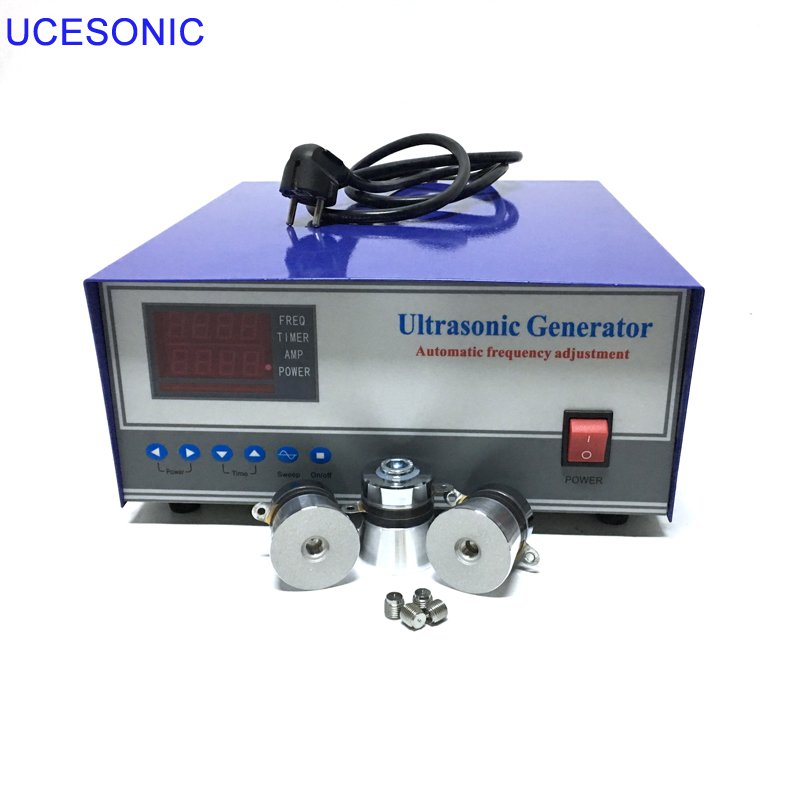

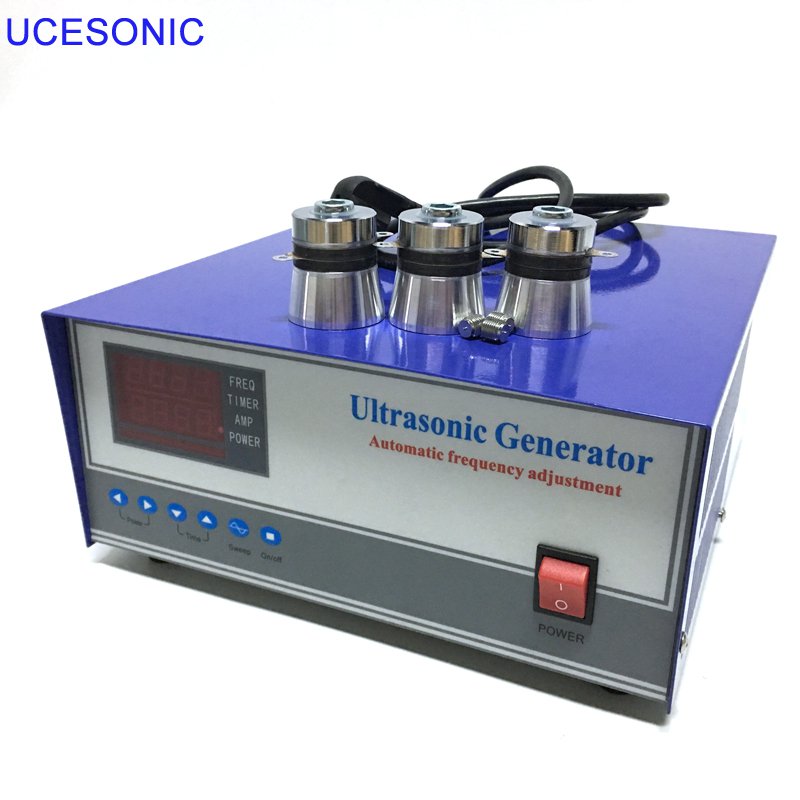

Ultrasound generator is a kind of device which converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer. It is also called ultrasonic power supply. The series of ultrasonic generators produced by our company are based on well-known experts and professors in China. They are assembled and developed by using imported high-power components and drawing on advanced experience at home and abroad.
ultrasonic generator is widely used in ultrasonic cleaning, welding, drilling, polishing, homogenization, descaling and other fields. The products sell well all over the country and are well received by users.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
