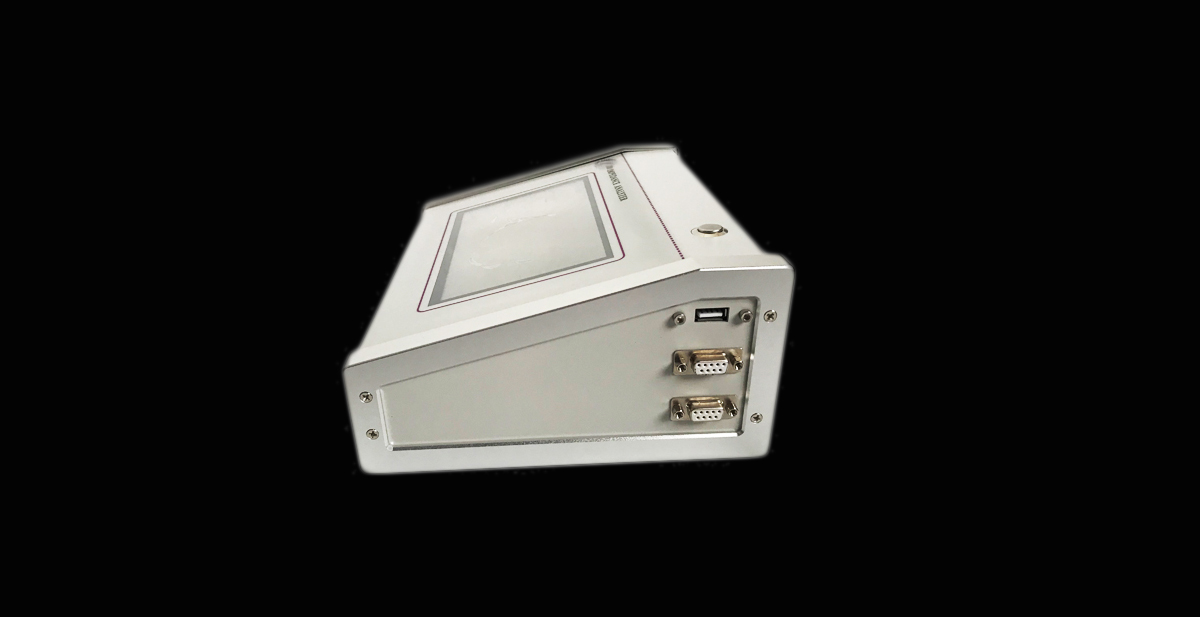

ultrasonic frequency impedance analyzer 1mh-5mhz
Ultrasonic Impedance analyzer can measure and evaluate to match the circuit. For piezoelectric ceramic chip, it can directly judge whether the device is good or bad from admittance circle diagram and logarithmic coordinate. If there are layers or cracks in the ceramic chip, the logarithmic curve will appear multiple peaks, and many parasitic small circles will appear on admittance circle diagram. For the design, processing and assembly of horn, whether it is reasonable or defective is directly on the conduction circle diagram Obviously, it can be seen that for the production and processing of ultrasonic welding machine, the results of admittance circle are used to analyze the state of the welding machine, and the existing problems of the welding machine are found through the analysis of parameters and figures. For the production and processing of ultrasonic cleaning machine, the selection of vibrator requires that its vibration performance be as consistent as possible (bandwidth, quality factor, resonance frequency, dynamic impedance). On the admittance circle diagram, it is possible to There is no parasitic circle or there is no parasitic circle near the resonance point. It can analyze and measure the impedance characteristics of the transducer and the cleaner after manufacturing, incoming material inspection, bonding. It can calibrate the resonance frequency and static capacitance of the machine to match the power supply. It can analyze the characteristics of the new resonance point, the impedance after water injection, the capacitance and the vibration mode of the whole machine Sex.
