ultrasonic cleaning equipment manufacturers

ultrasonic cleaning equipment manufacturers

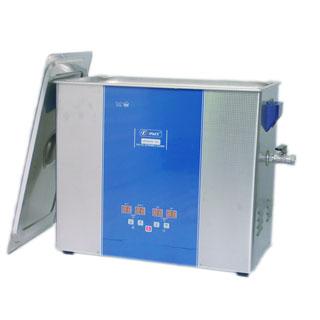

Ultrasonic Cleaner
Ultrasonic cleaning and other cleaning rate compared with the wash, a small residue, cleaning time is short, cleaning effect, all can be dipped into the liquid to be cleaned parts, ultrasonic cleaning effect it has. Without obstructing the cleaning surface shape, for example, deep hole, slit, groove. Can be cleaned. As the ultrasonic generator work to enlarge the use of Class D, the electric sound transducer is high, so ultrasonic cleaning with high efficiency. It is a true high-speed, high quality, can be easily automated cleaning technology. If the cleaner use of non-ODS cleaning agent is a green cleaning effect. Ultrasonic cleaning of glass, metal objects, such as reflective of its strong cleaning effect, but not suitable for textiles, porous foam, rubber and other strong materials to absorb sound. Ultrasonic cleaning with a variety of chemical, physical, electrical and ultrasonic cleaning of the physical and chemical cleaning methods of comparison, has the following unique advantages:
* Can be quickly and thoroughly to remove all the dirt on the surface.
* To clean with a cavity, trench and other precision parts of complex shape.
* Non-destructive on the surface.
* Can use a variety of cleaning agents.
* At room temperature or appropriate heating (60 ℃ or so) can be cleaned.
* Whole integrated structure to facilitate the move.
* Saves solvent, clean paper, energy, the workplace and labor and so on.ultrasonic cleaning equipment manufacturers

Model
capacity(L)
Internal size
L*W*H mm

Outsize mm
L*W*H mm

Frequency KHZ
Output
W
Digital timer
Heating
cover
UCE-0.7L
0.7
150*86*65
175*110*150
40
35
×
×
UCE-F-0.7L
0.7
150*86*65
175*110*170
40
50
UCE-SF-1.3L
1.3
152*140*65
180*168*215
40
50
UCE-F-1.3
1.3
152*140*65
180*168*215
40
50
×
UCE-F-2L
2
152*140*100
180*168*215
40
50
UCE-SF-2L
2
152*140*100
180*168*215
40
50
×
UCE-F-2.6L
2.6
152*140*150
180*168*265
40
50
UCE-F-3L
3
240*140*100
265*165*265
40/28
100
UCE-F-4.5L
4.5
240*140*150
265*165*315
40/28
100
UCE-6S-4.5L
4.5
302*152*100
330*180*265
40/28
150
UCE-F-6.5L
6.5
302*152*150
330*180*315
40/28
150
UCE-F-8L
8
325*265*100
353*293*265
40/28
200
UCE-F-12L
12
325*265*150
353*293*315
40/28
200
UCE6SF-8L
8
325*265*100
353*293*265
40/28
300
UCE-12L
12
325*265*150
353*293*315
40/28
300
UCE-16L
16
310*210*250
410*310*450
40/28
300
 √
UCE8-24L
24
330*250*300
450*370*550
40/28
400
 √
ultrasonic cleaning equipment manufacturers
