Koreanindustrial ultrasonic cleaning system

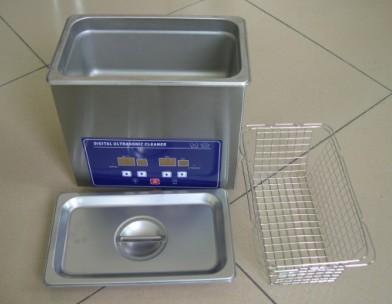

UCE series use water-based cleaning agent, low cost, good cleaning effect, is the best, most cost-effective cleaning equipment.
Scope:
Electronic components, electroplating, metal, watches, strap, tools, optical lenses, jewelry, lenses, eyeglass frames, semi-Dao silicon, spinning plates and glassware through the filter cleaning. All imports of thick stainless steel acid, attractive and durable.
* U.S. high-Q oscillator, ultrasonic power is strong;
Automatic Adjustable room temperature thermostat system to 100 ℃;
* 24 hours continuous work, to adapt to mass production;
* Advanced third-generation generator, better efficiency, higher frequency, better quality;
· 40KHz, 68KHz, 80KHz, 120KHz, 170KHz, 1000KHz, better;industrial ultrasonic cleaning system
|
Model
|
capacity(L)
|
Internal size
L*W*H mm
|
Outsize mm
L*W*H mm
|
Frequency KHZ
|
Output
W
|
Digital timer
|
Heating
|
cover
|
|
UCE-0.7L
|
0.7
|
150*86*65
|
175*110*150
|
40
|
35
|
×
|
×
|
√
|
|
UCE-F-0.7L
|
0.7
|
150*86*65
|
175*110*170
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-1.3L
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-1.3
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2.6L
|
2.6
|
152*140*150
|
180*168*265
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-3L
|
3
|
240*140*100
|
265*165*265
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-F-4.5L
|
4.5
|
240*140*150
|
265*165*315
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-6S-4.5L
|
4.5
|
302*152*100
|
330*180*265
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-6.5L
|
6.5
|
302*152*150
|
330*180*315
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE-F-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE6SF-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-16L
|
16
|
310*210*250
|
410*310*450
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE8-24L
|
24
|
330*250*300
|
450*370*550
|
40/28
|
400
|
√
|
√
|
√
|
industrial ultrasonic cleaning system
