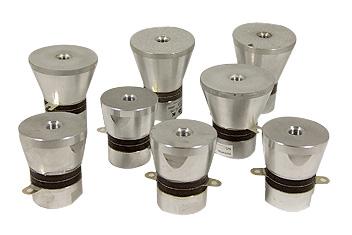

Korean50W/60W/100W/120W piezoelectric vibrator
piezoelectric vibrator is to convert electrical energy into mechanical energy (ultrasonic) devices, one of the most mature and reliable based on the piezoelectric effect to convert electrical energy and acoustic energy device, known as the piezoelectric transducer. It consists of the central piezoelectric ceramic components, before and after the metal decking, pre-stressed screw electrodes and insulation tubes. This sandwich transducer (bolt-type transducer) changes in load produce stable ultrasound, ultrasound-driven power source is to obtain the most basic method. Depending on the design, they are mainly in the form of cylindrical (metal cover around the same diameter), down horn (curved over the front cover through narrow diameter), steel column cover, cylindrical middle section and so on.
Main features:
Efficiency: mechanical quality factor is high, the resonant frequency electro-acoustic work available to a very high conversion efficiency.
Large amplitude: The computer optimized design of the structure, vibration ratio is high, front cover a large amplitude.
Big power: in the pre-stressed screw under the action of piezoelectric ceramic energy to be the greatest play.
Heat resistance: the resonant impedance, heat a small, wide temperature range. High reliability and long life.50W/60W/100W/120W piezoelectric vibrator
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
|
UCE-UT-20100 PZT-8 |
94 |
900 |
20 |
10-20 |
5200 |
100 |
|
UCE-UT-25100 PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
|
UCE-UT-28120 PZT-4 |
66 |
720 |
28 |
10-20 |
7800 |
120 |
|
UCE-UT-28100 PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
|
UCE-UT-28100 PZT-4 |
66 |
624 |
28 |
10-20 |
6600 |
100 |
|
UCE-UT-30100 PZT-8 |
61 |
555 |
30 |
10-20 |
5200 |
100 |
|
UCE-UT-2560 PZT-4 |
77 |
530 |
25 |
10-20 |
5400 |
60 |
|
UCE-UT-2860 PZT-8 |
68 |
470 |
28 |
10-20 |
3800 |
60 |
|
UCE-UT-2850 PZT-4 |
82 |
425 |
28 |
10-20 |
4100 |
50 |
|
UCE-UT-3360 PZT-8 |
58 |
420 |
33 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-8 |
55 |
300 |
40 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-4 |
56 |
310 |
40 |
10-20 |
5400 |
60 |
|
UCE-UT-4050 PZT-4 |
54 |
260 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-4050-1 PZT-4 |
57 |
300 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-5435 PZT-4 |
36 |
135 |
54 |
10-20 |
3200 |
35 |
|
UCE-UT-6860 PZT-8 |
80 |
460 |
68 |
10-20 |
3800 |
60 |
|
UCE-UT-68120 PZT-4 |
67 |
588 |
68 |
10-20 |
7800 |
120 |
|
UCE-UT-8060 PZT-4 |
60 |
325 |
80 |
10-20 |
5400 |
60 |
|
UCE-UT-12060 PZT-4 |
56 |
260 |
120 |
10-20 |
5400 |
60 |
|
UCE-UT-13550 PZT-4 |
54 |
215 |
135 |
10-20 |
4200 |
50 |
50W/60W/100W/120W piezoelectric vibrator
