pzt-4/pzt-8 пиезоелектрични керамични

pzt-4/pzt-8 пиезоелектрични керамични

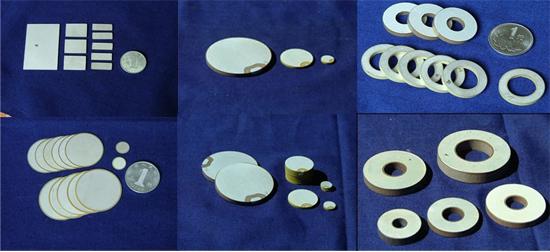

Piezo vibrador de cerámica feitas de material PZT-81 son amplamente utilizados na limpeza ultra-sónica, soldeo ultra-sonic, sensor de medida ultra-son a distancia, detector ultra-sonic, motor ultrasóns, transformador de ultrasóns e outros transdutores de alta potencia emanant por mor da capacidade do material de perda dielétrica baixo so forte tensión e capacidade de estabilización.pzt-4/pzt-8 пиезоелектрични керамични

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (±12.5%)pF	Dielectric dissipation factor tanδ(%)	Impedance (Ω)	Kr	Mechanical quality factor (Qm)
UCE-3030	Φ30×3.0	66.7	2730	≤0.3	≤15	≥0.55	500
UCE-3530	Φ35×3.0	63.0	3100	≤0.3	≤15	≥0.55	500
UCE-3865	Φ38×6.5	59.9	1580	≤0.3	≤15	≥0.55	500
UCE-4530	Φ45×3.0	50.0	5100	≤0.3	≤15	≥0.55	500
UCE-4535	Φ45×3.5	50.0	4700	≤0.3	≤15	≥0.55	500
UCE-5030	Φ50×3.0	46.0	5800	≤0.3	≤15	≥0.55	500
UCE-5035	Φ50×3.5	46.0	6300	≤0.3	≤15	≥0.55	500
UCE-5050	Φ50×5.0	46.0	4150	≤0.3	≤15	≥0.55	500

pzt-4/pzt-8 пиезоелектрични керамични
