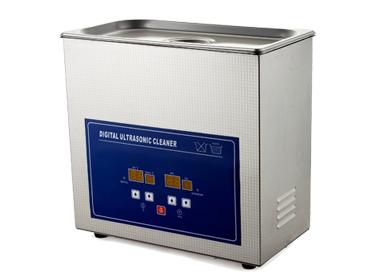

KoreanPCB ultrasonic cleaning machine
PCB flux used in soldering components into water-soluble type, and no-clean rosin-based categories, with more of the first two, the use of ultrasonic cleaning (many of them are the use of alcohol, brushing), no-clean in principle should not be cleaned, but now the world's most manufacturers even with no-clean flux soldering components still need cleaning. Especially high density PCB as well as high-density IC does not wash out of the foot or do not use ultrasonic cleaning, high-density circuits will lead to a foot across and between the IC adsorption dust, once the environmental humidity and prone to inter-and high-density lines foot short-circuit and fail, and once dry environment, short-circuit fault and go away, but such failure is not easy to find. So the world of electronic machine factory adhere to the PCB board for ultrasonic cleaning.
PCB circuit board cleaning machine uses: the main circuit board cleaning machine for cleaning printed circuit board after soldering flux residue, dust, fiber, metal and non-metallic and the oxide debris, sweat, fingerprints, grease and other dirt. Clean and strong, clean without leaving remnants.PCB ultrasonic cleaning machine
|
Model
|
capacity(L)
|
Internal size
L*W*H mm
|
Outsize mm
L*W*H mm
|
Frequency KHZ
|
Output
W
|
Digital timer
|
Heating
|
cover
|
|
UCE-0.7L
|
0.7
|
150*86*65
|
175*110*150
|
40
|
35
|
×
|
×
|
√
|
|
UCE-F-0.7L
|
0.7
|
150*86*65
|
175*110*170
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-1.3L
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-1.3
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2.6L
|
2.6
|
152*140*150
|
180*168*265
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-3L
|
3
|
240*140*100
|
265*165*265
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-F-4.5L
|
4.5
|
240*140*150
|
265*165*315
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-6S-4.5L
|
4.5
|
302*152*100
|
330*180*265
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-6.5L
|
6.5
|
302*152*150
|
330*180*315
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE-F-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE6SF-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-16L
|
16
|
310*210*250
|
410*310*450
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE8-24L
|
24
|
330*250*300
|
450*370*550
|
40/28
|
400
|
√
|
√
|
√
|
