Koreanindustrial Ultrasonic cleaning Transducer
Ultrasonic cleaning is produced by the ultrasound transducer, the use of ultrasonic cavitation in water to achieve a good cleaning effect. To the piezoelectric effect to convert electrical energy and acoustic energy device called the piezoelectric transducer, which consists of the central piezoelectric stack before and after the metal decking, pre-stressed screw, piezoelectric chip, the nickel electrodes and insulation tubes . Through the imposition of appropriate pre-stressed, so high power piezoelectric ceramics under conditions of high amplitude is not easy to break. Our use of the sandwich transducer (bolt-type transducer that LBT-type piezoelectric transducer), changes in the load can produce a stable ultrasound is widely used in ultrasonic cleaning, welding, drilling, etc. Flexible and easy to use and install, the transducer using the "spiral" approach can be installed anywhere.
When the input transducer of the electric power the same, because the speaker radiating transducer area than a large bar, so the radius of the sound intensity is low, and its bonding surface cavitation corrosion of stainless steel small. So in general the use of horn-shaped transducer is better. However, because of its straight cylindrical transducer radiating area of small, high sound intensity of radiation, the role of distance, for example, cleaning deep holes, it should adopt this type.
Products classified according to different methods, are:
A. Piezoelectric Category: P4 Series with black chips and the use of yellow chips P8 series;
B. Frequency categories: low-frequency range (17 ~ 23KHz), intermediate frequency range (25 ~ 28KHz), high-frequency range (33 ~ 60KHz) and high frequency range (68-200KHz);
C. Power Classification: 50W Series (60W), 100W series (including 80W) and other unconventional power;

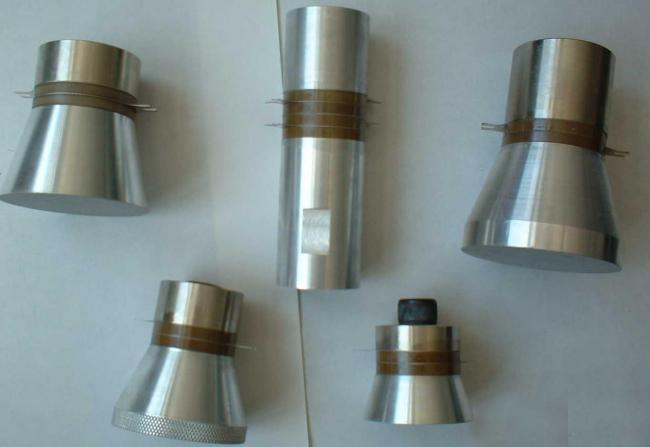

D. Shape categories: straight cylindrical and horn;industrial Ultrasonic cleaning Transducer
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
|
UCE-UT-20100 PZT-8 |
94 |
900 |
20 |
10-20 |
5200 |
100 |
|
UCE-UT-25100 PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
|
UCE-UT-28120 PZT-4 |
66 |
720 |
28 |
10-20 |
7800 |
120 |
|
UCE-UT-28100 PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
|
UCE-UT-28100 PZT-4 |
66 |
624 |
28 |
10-20 |
6600 |
100 |
|
UCE-UT-30100 PZT-8 |
61 |
555 |
30 |
10-20 |
5200 |
100 |
|
UCE-UT-2560 PZT-4 |
77 |
530 |
25 |
10-20 |
5400 |
60 |
|
UCE-UT-2860 PZT-8 |
68 |
470 |
28 |
10-20 |
3800 |
60 |
|
UCE-UT-2850 PZT-4 |
82 |
425 |
28 |
10-20 |
4100 |
50 |
|
UCE-UT-3360 PZT-8 |
58 |
420 |
33 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-8 |
55 |
300 |
40 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-4 |
56 |
310 |
40 |
10-20 |
5400 |
60 |
|
UCE-UT-4050 PZT-4 |
54 |
260 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-4050-1 PZT-4 |
57 |
300 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-5435 PZT-4 |
36 |
135 |
54 |
10-20 |
3200 |
35 |
|
UCE-UT-6860 PZT-8 |
80 |
460 |
68 |
10-20 |
3800 |
60 |
|
UCE-UT-68120 PZT-4 |
67 |
588 |
68 |
10-20 |
7800 |
120 |
|
UCE-UT-8060 PZT-4 |
60 |
325 |
80 |
10-20 |
5400 |
60 |
|
UCE-UT-12060 PZT-4 |
56 |
260 |
120 |
10-20 |
5400 |
60 |
|
UCE-UT-13550 PZT-4 |
54 |
215 |
135 |
10-20 |
4200 |
50 |
