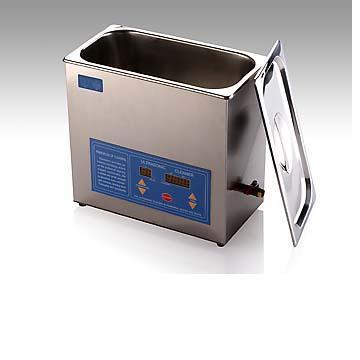

KoreanHigh frequency ultrasonic cleaning machine
UCE Series Single-tank ultrasonic cleaning machine, use alkaline or acidic water-based solvent as a cleaning agent.
This series is suitable for pre-plating processing and plating Yu Zhi after cleaning, watch parts, jewelry, lenses, spectacles frames and glassware cleaning.
He excited the use of line structure, the input power than a 15% increase over the old circuit.
Ultrasonic output frequency according to different conditions for fine-tuning.
With the sound from the sweep line, improve cleaning efficiency.
Optional additional features: ultrasonic continuous stepless adjustable output power, can display the range of 10 - 100%;
New Products: digital ultrasonic generator, using IGBT modules, microcontroller technology, working conditions and more stable power output even more powerful.High frequency ultrasonic cleaning machine
|
Model
|
capacity(L)
|
Internal size
L*W*H mm
|
Outsize mm
L*W*H mm
|
Frequency KHZ
|
Output
W
|
Digital timer
|
Heating
|
cover
|
|
UCE-0.7L
|
0.7
|
150*86*65
|
175*110*150
|
40
|
35
|
×
|
×
|
√
|
|
UCE-F-0.7L
|
0.7
|
150*86*65
|
175*110*170
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-1.3L
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-1.3
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2.6L
|
2.6
|
152*140*150
|
180*168*265
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-3L
|
3
|
240*140*100
|
265*165*265
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-F-4.5L
|
4.5
|
240*140*150
|
265*165*315
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-6S-4.5L
|
4.5
|
302*152*100
|
330*180*265
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-6.5L
|
6.5
|
302*152*150
|
330*180*315
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE-F-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE6SF-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-16L
|
16
|
310*210*250
|
410*310*450
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE8-24L
|
24
|
330*250*300
|
450*370*550
|
40/28
|
400
|
√
|
√
|
√
|
High frequency ultrasonic cleaning machine
