Koreanultrasonic generator power supply

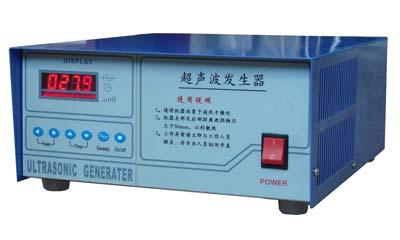

UCE series of ultrasonic power using the patented closed negative feedback loop frequency automatic tracking system with excellent frequency tracking performance, tracking frequency wide, fast and stable, adaptive variety of high-, medium-Q transducer can be widely used in ultrasonic welding, ultrasonic cleaning, ultrasonic cutting, ultrasonic grinding, ultrasonic finishing, ultrasonic plastic processing, ultrasonic impact grinding, crushing and other ultrasonic processing.
Features are as follows:
1, with five kinds of tracking mode, automatic tracking frequency tuning. Type Power（W） Frequency (KHz) UCE—UG300W 300 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG500W 500 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG600W 600 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG900W 900 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG1000W 1000 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG1200W 1200 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG1500W 1500 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG1800W 1800 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG2000W 2000 20khz,25khz,28khz,33khz,40khz Frequency is adjustable UCE—UG2400W 2400 20khz,25khz,28khz,33khz,40khz Frequency is adjustable High Frequency 500W-1200W 65-80 High Frequency 500W-1200W 120-135
2, with the loss of HS (offset), overheating, overload protection triple, high reliability.
3, adaptive load output power, high efficiency, energy conservation excellence.
4, stepless adjustable output amplitude.
5, power supply with integrated touch panel keys.
6, small size, big power, highly integrated, customized professional manufacturer of components. ultrasonic generator power supply
Key parameter:
|
Power Rating |
600W |
900W |
1200W |
1500W |
1800W |
2000W |
|
Working Current |
2.5A |
3.5A |
4.5A |
5-5.5A |
6-6.5A |
6.5-7A |
ultrasonic generator power supply
