Korean600W/1200W/2400W/3000W Ultrasonic cleaning system

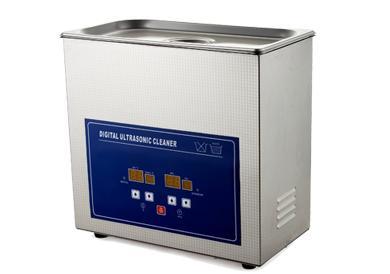

UCE Series Single Series compact desktop ultrasonic cleaning machine by ultrasonic cleaning tank, ultrasonic generator and control system of ultrasonic cleaning equipment. This series of cleaning machine is mainly used as a water-based cleaning fluid cleaning solvent.
Main features:
1, the use of high-quality high-performance transducers and unique ultrasonic generator and cleaning power strong, stable performance.
2, can be environmentally friendly water-based solvent or organic solvents, environmentally friendly.
3, the use of laminated material made of SUS304 stainless steel, acid and alkali resistant, beautiful.
4, heating unit with automatic temperature control, temperature control range 0-100 ℃.
5, generator and cleaning tank integrated design, simple operation, good cleaning effect.
6, with timing devices, according to the need to set the cleaning time.
Scope:
1, electronic appliances: circuit boards, optical components, electric vacuum parts, magnetic materials, semiconductor components.
2, machine: all kinds of motor vehicle parts, hydraulic and pneumatic components, mechanical parts, bearing pipe, plating parts.
3, Car Repair: spark plugs, carburetors, fuel injectors, battery electrodes, fuel pumps.
4, hardware tools: cutting tools, measuring tools, carbide tools, emery, screen and so on.
5, light industry: watch parts, camera parts, sewing machine parts, glass, glasses, etc.
6, Chemical: Chemical reagent containers (beakers, test tubes, etc.), chemical fiber spinning jet, laboratory (emulsion degassing) and so on.
7 Medical: surgical instruments, dental machinery, glass containers, utensils and other drugs.
8, accessories: metal ornaments, gold and silver jewelry, jewelry and so on.
|
Model
|
capacity(L)
|
Internal size
L*W*H mm
|
Outsize mm
L*W*H mm
|
Frequency KHZ
|
Output
W
|
Digital timer
|
Heating
|
cover
|
|
UCE-0.7L
|
0.7
|
150*86*65
|
175*110*150
|
40
|
35
|
×
|
×
|
√
|
|
UCE-F-0.7L
|
0.7
|
150*86*65
|
175*110*170
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-1.3L
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-1.3
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2.6L
|
2.6
|
152*140*150
|
180*168*265
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-3L
|
3
|
240*140*100
|
265*165*265
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-F-4.5L
|
4.5
|
240*140*150
|
265*165*315
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-6S-4.5L
|
4.5
|
302*152*100
|
330*180*265
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-6.5L
|
6.5
|
302*152*150
|
330*180*315
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE-F-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE6SF-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-16L
|
16
|
310*210*250
|
410*310*450
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE8-24L
|
24
|
330*250*300
|
450*370*550
|
40/28
|
400
|
√
|
√
|
√
|
