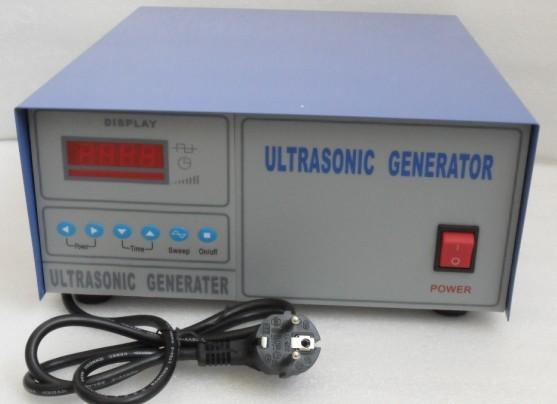

ultrasonic cleaning equipment generator
ultrasonic cleaning equipment generator control box under the control microcomputer which excited lines, swept frequency automatic tracking and work and other advanced technologies. Compared with the traditional control box, with a stable and reliable, continuously adjustable ultrasonic power, to maximize the potential of the transducer. Frequency automatic tracking, better match the output power is more powerful and efficient. Unique sweep work, so that cleaning fluid under the effect of the sweep to form a small return in time to strip down the dirt away from the ultrasonic surface, so as to achieve faster, more thorough cleaning effect, ultrasonic cleaning is more efficient high.
ultrasonic cleaning equipment generator features:
1. Unique seamless freewheeling circuit, superior performance. (This is our unique in the peer in the latest technology)
2. Output current ripple ≤ 2%, the cleaning effect is more stable oscillator can be well protected from damage
3. Output current is a pure sine wave oscillator and can extend the life of the signal generator itself.
4. Automatic sweep function: sweep frequency adjustable from 10Hz-2KHz, sweep from 10% -100% power to make a better cleaning effect (changes can produce multiple harmonics)
5. Protection: power protection, overcurrent protection, overvoltage protection, undervoltage protection, frequency tracking failure and over temperature protection, output short circuit protection, under all the different states of the oscillator signal generator to protect, extend the machine work life (can play the role of isolation, when the oscillator is damaged, do not also cause damage to the generator, which in turn is the same reason, the occurrence of short circuit can automatically adapt to, and will not damage the machine)
6, functions with the sound, increase the variety of choices: choose time settings, or work long hours, you can choose on or off sweep sweep, sweep function is the superposition of three sweep frequency, the overall noise is reduced, the cleaning effect the better.
Type |
Power(W) |
Frequency (KHz) |
UCE—UG300W |
300 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG500W |
500 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG600W |
600 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG900W |
900 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1000W |
1000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1200W |
1200 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1500W |
1500 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1800W |
1800 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG2000W |
2000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG2400W |
2400 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
High Frequency |
500W-1200W |
65-80 |
High Frequency |
500W-1200W |
120-135 |
