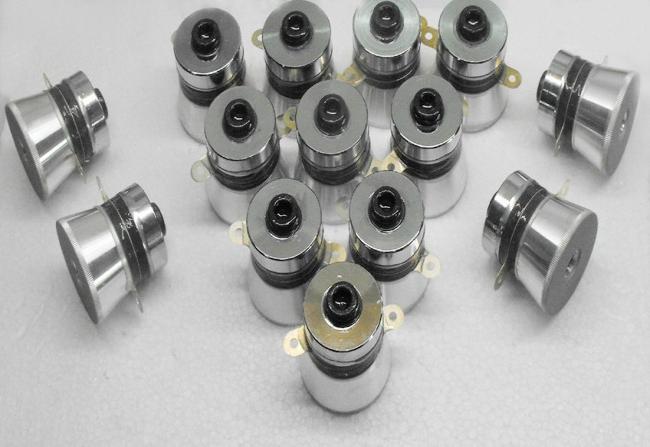

Korean50W/60W/100W/120W Piezoelectric vibration transducer
Piezoelectric vibration transducer is generated by the ultrasonic transducer, the use of ultrasonic cavitation in water to achieve good cleaning results. To the piezoelectric effect to convert electrical energy and acoustic energy device known as the piezoelectric transducer, which consists of piezoelectric ceramic stack before and after the central metal cover, pre-stressed screw, piezoelectric chip, nickel alloy electrode film and the insulating tubes . Through the imposition of appropriate pre-stressed, so that in the high-power piezoelectric ceramics under conditions of high amplitude is not easy to break. Our use of the sandwich transducer (bolt-type transducer, the LBT-type piezoelectric transducer), changes in the load can produce a stable ultrasound is widely used in ultrasonic cleaning, welding, drilling and so on. Flexible and easy to use and install, the transducer using the "spiral" approach can be installed anywhere.
Characteristics of Piezoelectric vibration transducer:
◆ High performance: high mechanical Q, electro-acoustic conversion efficiency as high as 90%.
◆ Large amplitude: shock shock sub-high-speed, compared with the magnetostrictive transducer amplitude increased by 50% or more.
◆ Heat resistance: high-quality materials, good heat resistance, resonant impedance is low, heat small.
◆ structural strength: high quality standard steel bolt, high reliability.
◆ electrical parameters: a unique production process, digital processing and assembly equipment, high-performance parameters, consistency is good.
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
|
UCE-UT-20100 PZT-8 |
94 |
900 |
20 |
10-20 |
5200 |
100 |
|
UCE-UT-25100 PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
|
UCE-UT-28120 PZT-4 |
66 |
720 |
28 |
10-20 |
7800 |
120 |
|
UCE-UT-28100 PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
|
UCE-UT-28100 PZT-4 |
66 |
624 |
28 |
10-20 |
6600 |
100 |
|
UCE-UT-30100 PZT-8 |
61 |
555 |
30 |
10-20 |
5200 |
100 |
|
UCE-UT-2560 PZT-4 |
77 |
530 |
25 |
10-20 |
5400 |
60 |
|
UCE-UT-2860 PZT-8 |
68 |
470 |
28 |
10-20 |
3800 |
60 |
|
UCE-UT-2850 PZT-4 |
82 |
425 |
28 |
10-20 |
4100 |
50 |
|
UCE-UT-3360 PZT-8 |
58 |
420 |
33 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-8 |
55 |
300 |
40 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-4 |
56 |
310 |
40 |
10-20 |
5400 |
60 |
|
UCE-UT-4050 PZT-4 |
54 |
260 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-4050-1 PZT-4 |
57 |
300 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-5435 PZT-4 |
36 |
135 |
54 |
10-20 |
3200 |
35 |
|
UCE-UT-6860 PZT-8 |
80 |
460 |
68 |
10-20 |
3800 |
60 |
|
UCE-UT-68120 PZT-4 |
67 |
588 |
68 |
10-20 |
7800 |
120 |
|
UCE-UT-8060 PZT-4 |
60 |
325 |
80 |
10-20 |
5400 |
60 |
|
UCE-UT-12060 PZT-4 |
56 |
260 |
120 |
10-20 |
5400 |
60 |
|
UCE-UT-13550 PZT-4 |
54 |
215 |
135 |
10-20 |
4200 |
50 |
