piezoelectric transducer-UCE piezoelectric ultrasonic transducer
piezoelectric ultrasonic transducer, also known as ultrasonic oscillator is converted into mechanical energy to electrical devices, mainly using the piezoelectric effect of piezoelectric ceramic electric and acoustic energy conversion, it is called ultrasonic transducer.

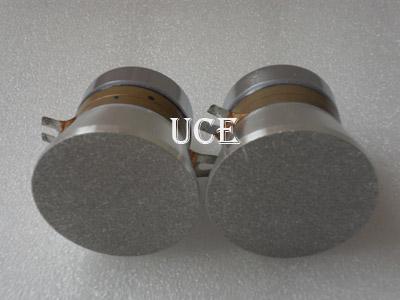

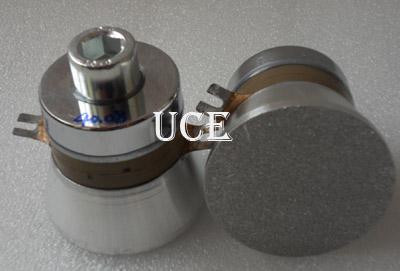

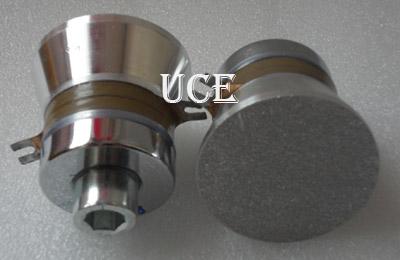

Central ultrasonic transducer piezoelectric ceramic components, before and after the metal cover, pre-stressed screw electrodes and insulating tubes. This sandwich transducer produces changes in the load stable ultrasound, ultrasound-driven power source is to obtain the most basic method.
Depending on the design, the shape of ultrasonic transducers are cylindrical, horn, cylindrical middle section and other structural shapes.
I produced a series of ultrasonic transducer (piezoelectric transducer) is widely used in washing, detection, homogeneous, machining and many other fields, well received by customers.
1 High performance: high mechanical Q, electro-acoustic conversion efficiency as high as 90%.
2 large amplitude: high-speed shock sub-shock, compared with the magnetostrictive transducer amplitude increased by 50% or more.
3 Heat resistance: high-quality materials, good heat resistance, resonant impedance is low, heat small.
4, strong structure: high-quality standard steel bolt, high reliability.
5 electrical parameters: a unique production process, digital processing and assembly equipment, parameters, high-performance, consistency is good.
piezoelectric transducer, ultrasonic shock sub, ultrasonic shock the first ultrasonic transducer frequency from 20KHz/25KHz/28KHz/40KHz/60KHz/120KHz / above, or special purpose transducer accessories.
We firmly believe that "customer first, quality first" is the basis for survival. We will continue to fast and good quality products service, warm and sincere cooperation with customers to create brilliant.
