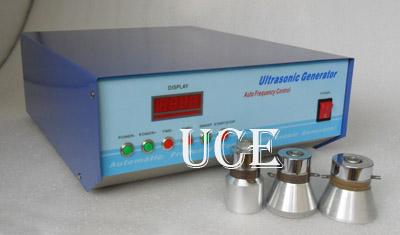

Koreanultrasonic generator kit-UCE ultrasonic generator
Ultrasonic generator is to convert electrical energy into ultrasound energy, ultrasound transducer to provide energy conversion devices, also known as ultrasonic power. I produced a series of ultrasonic generator is well-known experts and professors for technical support, drawing on advanced domestic and international experience, high-power devices are assembled using imported R & D made. Microcomputer control box under the control of its excited lines, swept frequency automatic tracking and work and other advanced technologies. Compared with the traditional control box, with a stable and reliable, continuously adjustable ultrasonic power, to maximize the potential of the transducer. Frequency automatic tracking, better match the output power is more powerful and efficient. Unique sweep work, so that cleaning fluid under the effect of the sweep to form a small return in time to strip down the dirt away from the ultrasonic surface, so as to achieve faster, more thorough cleaning effect, ultrasonic cleaning is more efficient high. At the same time, with perfect protection: thermal protection and over-current protection, work more reliable. Also has four timers that control the precise time to seconds. With the digital power adjustment can be adapted to a variety of different cleaning requirements.
Advantages of our ultrasonic generator description:
1 frequency automatic tracking: automatic head tracking output inductor and resonant vibration frequency of the cleaning effect will not change with temperature, humidity, water depth, oscillator aging and the use of time and other conditions change, so that the cleaning effect has been maintained at the highest level, the frequency deviation only 0.1 ‰ conversion efficiency ≥ 92%.
2 a pure sine wave output current can be extended oscillator and signal generator's own life.
3 automatic sweep function: frequency sweep from 10Hz - 2KHz adjustable power sweep from 10% - 100%, so that a better cleaning effect.
4 ≤ 1% output current ripple effect to make cleaning more stable oscillator can be well protected from damage.
5 closed-loop control, the output current is more stable, so that current will not change with input voltage, oscillator aging conditions change, sustainable power to keep strong.
6 adjustable output power.
7 shows the output current, frequency tracking direction, over-temperature indication, output short circuit indication, vibration head failure indication. Can be more intuitive understanding of their work status.
8 Protection: power protection, overcurrent protection, overvoltage protection, undervoltage protection, frequency tracking failure and over temperature protection, output short circuit protection, under all of the different states and the oscillator signal generator to protect and prolong whole working life.
9 Power shock circuit, soft start to prevent excessive vibration instantaneous power head damage.

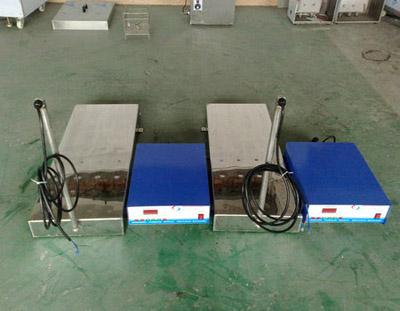

UCE ultrasonic generator with advanced foreign technology independently developed high-performance products, long-term use to prove, whether it is attached to a single cleaning tank, vibration plate or large automated cleaning system, UCE series ultrasonic generator can demonstrate efficient and stable operation advantages of convenience.ultrasonic generator kit-UCE ultrasonic generator
