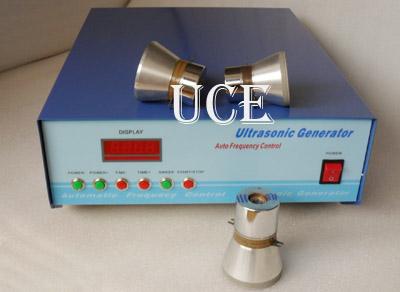

Multi Frequency Ultrasonic Generator

Multi Frequency Ultrasonic Generator

Multi Frequency Ultrasonic Generator Description:

I. Technical parameters:
1 :50 --- 2400W output power
(2) Input voltage :110 - 220-350V AC. 50/60Hz
3 Operating temperature: -20 --- +65 ℃
4 output harmonic parameters: 97% (Min)
5 Start the peak current (3000W load): less than or equal 40A
6 Frequency: 20K --- 135KHz (
7 Remote control voltage :6 --- 15VDC, high voltage shut down, restored low-level soft-start.
8. MOS / IGBT maximum temperature: 50 degrees (2400W load, ambient temperature of 25 degrees when the test).
9 MTBF: 50000 time. (100,000 hours optional)
10 with a maximum current envelope peak and valley ratio (unilateral): 66% (other models available in the market up to 5%, because this ratio is relatively large, so the transducer is non-destructive, non-burn cylinder)
11 unique triangular wave energy transfer circuit, the perfect solution bombing and burning cylinder problem, whether high or low temperature, water depth, load changes and power are very stable.
12 digital display output.
13 complete circuit protection, over temperature, over voltage, low voltage, over current, short circuit protection for generator problems that may occur in real-time monitoring.
14 power continuously adjustable.

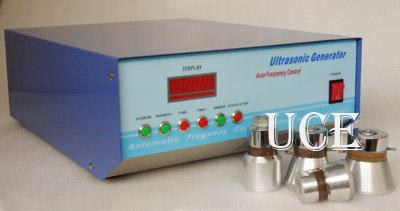

Multi Frequency Ultrasonic Generator

Ultrasonic generator, also known as ultrasonic power supply, electronic boxes, control boxes, high-power ultrasound is an important part of the system. Main role is to produce high-power high-frequency AC current, ultrasound transducer drivers work. A

The ultrasonic sound generator ensures stable high-power ultrasonic systems, safety, and monitoring high-power ultrasonic system operating frequency, power and other parameters, and can according to different requirements of users, real-time adjustment of various parameters Such as power, amplitude, run time.

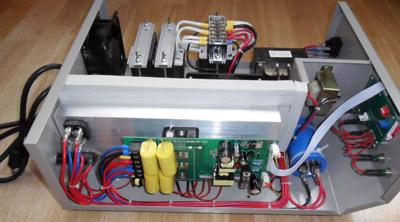

Ultrasonic generator power output inverter using IGBT-Ⅳ technology, small size, light weight, high efficiency, energy saving, good quality and long service life. Our stand-alone ultrasonic generator power up to 3KW, is the leading domestic level, the main components of which are imported.
