immersible ultrasonic transducer and ultrasonic generator

immersible ultrasonic transducer and ultrasonic generator
immersible ultrasonic transducer and ultrasonic generator

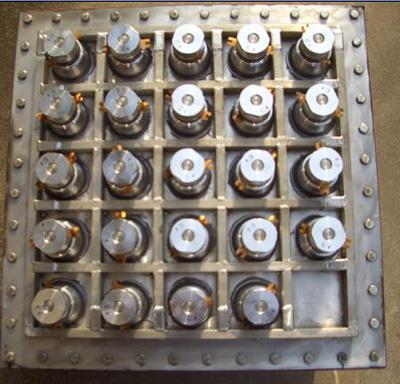

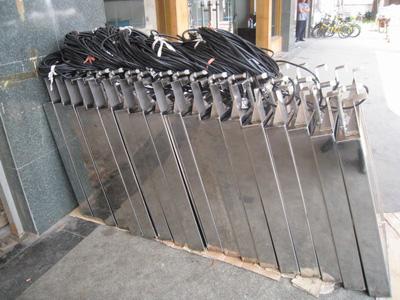

UCE series of ultrasonic shock plate devices into high-quality stainless steel production, shock surface is plated with hard chromium, corrosion resistance and long service life. South Korea uses the original high-quality ultrasonic transducer performance, with advanced bonding technology, electro-acoustic conversion efficiency, output power intensity ultrasound. Equipped with automatic temperature heating device, temperature range: room temperature ~ 110 ℃.

Applicable to all sectors of the workpiece cleaning, such as precision electronic components, watch parts, optical glass components, hardware and machinery parts, jewelry, semiconductor silicon, polyester filter element / spinneret, medical equipment, such as cleaning and parts washing before and after plating .
immersible ultrasonic transducer and ultrasonic generator

First, use the instructions and steps:

1, the shock plate installed smoothly, ultrasonic generator, a good chassis ground.

2, power cord, plug the cable is properly connected ultrasonic solid.

3, into the work of cleaning fluid to the tank, shock vibration plate surface to be fully immersed in cleaning fluid.

4, the recommended temperature ≥ 50 ℃.

5, the ultrasonic power adjustment knob to the minimum, on ultrasonic power switch, power oscillation will be raised to the required normal size.

Second, pay attention:

1, the shock vibration plate surface is not completely immersed in cleaning solution, the ban starts ultrasound, otherwise it will damage the ultrasonic transducer.

2, the vibration can not have direct contact with the object surface, otherwise it will damage the ultrasonic transducer.

3, not a liquid into the interior ultrasonic shock plate and ultrasonic generator.

4, when cleaning the tank too much sediment should be removed promptly put the wash, so as not to affect the ultrasonic cleaning effect.

5, cleaning recommended to clean the tank lid to reduce noise, open the cover, please note water droplets and steam burns the skin.

6, the cleaning liquid tank cleaning Do not have a mobile device, to prevent the cleaning fluid spill and damage the device.
immersible ultrasonic transducer and ultrasonic generator
immersible ultrasonic transducer and ultrasonic generator
