Koreanultrasonic cleaning transducer of UCE ultrasonic

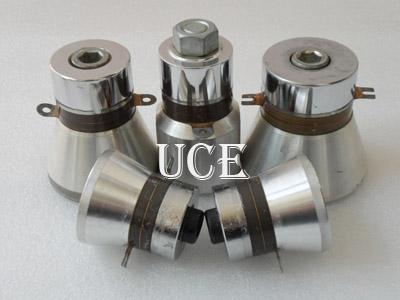

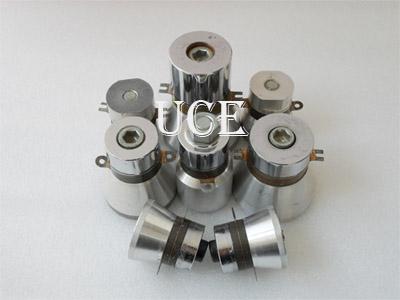

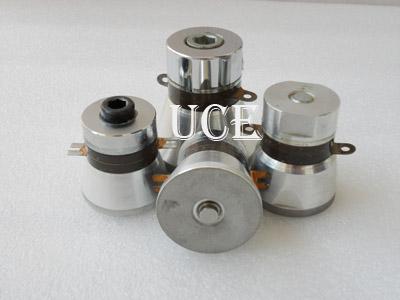

Ultrasonic cleaning is generated by the ultrasonic transducer, the use of ultrasonic cavitation in water to achieve good cleaning results. To the piezoelectric effect to convert electrical energy and acoustic energy device known as the piezoelectric transducer, which consists of piezoelectric ceramic stack before and after the central metal cover, pre-stressed screw, piezoelectric chip, nickel alloy electrode film and the insulating tubes . Through the imposition of appropriate pre-stressed, so that in the high-power piezoelectric ceramics under conditions of high amplitude is not easy to break. Our use of the sandwich transducer (bolt-type transducer, the LBT-type piezoelectric transducer), changes in the load can produce a stable ultrasound is widely used in ultrasonic cleaning, welding, drilling and so on. Flexible and easy to use and install, the transducer using the "spiral" approach can be installed anywhere.
UCE's ultrasonic transducer products classified according to different methods, are:
A. Piezoelectric Category: P4 Series with black chips and the use of yellow chips P8 series;
B. Frequency categories: low-frequency range (17 ~ 23KHz), intermediate frequency range (25 ~ 28KHz), the high frequency range (33 ~ 60KHz) and high frequency range (68-200KHz);
C. Power Category: 50W Series (60W), 100W Series (80W) and other unconventional power;
D. Shape classification: straight cylindrical and flared;
UCE Ultrasonic Co., Ltd. built high-power ultrasonic laboratory, equipped with a variety of ultrasound equipment. Ultrasound can provide customers with the application demonstration program, the principle test, structural design, system configuration and production of key components of a complete solution to help develop new applications. Also used to solve the customers use the product the various problems encountered in the process.
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
|
UCE-UT-20100 PZT-8 |
94 |
900 |
20 |
10-20 |
5200 |
100 |
|
UCE-UT-25100 PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
|
UCE-UT-28120 PZT-4 |
66 |
720 |
28 |
10-20 |
7800 |
120 |
|
UCE-UT-28100 PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
|
UCE-UT-28100 PZT-4 |
66 |
624 |
28 |
10-20 |
6600 |
100 |
|
UCE-UT-30100 PZT-8 |
61 |
555 |
30 |
10-20 |
5200 |
100 |
|
UCE-UT-2560 PZT-4 |
77 |
530 |
25 |
10-20 |
5400 |
60 |
|
UCE-UT-2860 PZT-8 |
68 |
470 |
28 |
10-20 |
3800 |
60 |
|
UCE-UT-2850 PZT-4 |
82 |
425 |
28 |
10-20 |
4100 |
50 |
|
UCE-UT-3360 PZT-8 |
58 |
420 |
33 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-8 |
55 |
300 |
40 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-4 |
56 |
310 |
40 |
10-20 |
5400 |
60 |
|
UCE-UT-4050 PZT-4 |
54 |
260 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-4050-1 PZT-4 |
57 |
300 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-5435 PZT-4 |
36 |
135 |
54 |
10-20 |
3200 |
35 |
|
UCE-UT-6860 PZT-8 |
80 |
460 |
68 |
10-20 |
3800 |
60 |
|
UCE-UT-68120 PZT-4 |
67 |
588 |
68 |
10-20 |
7800 |
120 |
|
UCE-UT-8060 PZT-4 |
60 |
325 |
80 |
10-20 |
5400 |
60 |
|
UCE-UT-12060 PZT-4 |
56 |
260 |
120 |
10-20 |
5400 |
60 |
|
UCE-UT-13550 PZT-4 |
54 |
215 |
135 |
10-20 |
4200 |
50 |
