KoreanCircuit board ultrasonic cleaning machine
Slot-type ultrasonic cleaner ultrasonic cleaner circuit board

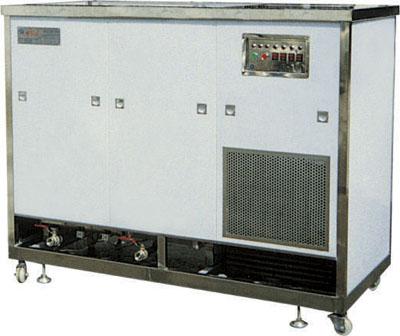

I. Product Overview
UCE-2R series of ultrasonic cleaning machines using non-flammable organic solvents such as trichlorethylene, trichloroethane or similar environmentally friendly cleaning agent performance
Such as cleaning agents.
Second, this machine has the following features:
① ultrasonic washing
② steam cleaning
③ spray wash
④ freeze-drying
Third, for: electronic components and circuit board cleaning rosin, precision mechanical parts of grease, dirt, etc. strap case.
Wash the advantages of fast drying, suitable for continuous production.
1) attached to solvent filtration, recycling systems, reduce production costs.
2) All stainless steel, acid and alkali resistant, beautiful and durable.
3) automatic heating temperature control device attached to the solvent, temperature range of 30-110 ℃.
4) Built-in condensate system to prevent solvent evaporation.
5) attached to rapid freeze-drying system that allows quick packing or cleaning the workpiece into the next process.
model |
UCE-2006R |
UCE-2012R |
UCE-2018R |
UCE-2024R |
UCE-2030R |
|
Ultrasonic power |
300W |
600W |
900W |
1200W |
1500W |
|
Ultrasonic frequency |
28KHz |
28KHz |
28KHz |
28KHz |
28KHz |
|
内槽尺寸 |
200×290×300 |
400×320×340 |
410×360×380 |
480×390×440 |
560×410×480 |
|
外型尺寸 |
1100×610×1145 |
1480×640×1240 |
1560×670×1300 |
1750×710×1300 |
2020×730×1320 |
