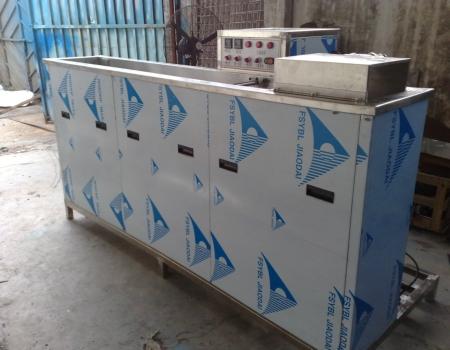

Ultrasonic stencil cleaning machines

Ultrasonic stencil cleaning machines

Stencil Series ultrasonic cleaning machine is mainly from the ultrasonic generator, transducer, cleaning tank, reservoir filtration system, automatic temperature control heating system, sprinkler system, rack, control system components

Tank size: 2000 × 1200 × 1200 (L × W × H mm)
Ultrasonic Power: 3600W
Ultrasonic transducer 72 each 50W (Japan NTK transducer)
Ultrasonic Frequency: 28KHZ
Occurrence of gas ultrasonic device: 2
The form of ultrasonic wave vibration device with the bottom
Loop filter pump power: 1P
Set overflow, flooding the surface of devices (cleaning the tank, and a large number of oil and other contaminants suspended in the solution surface by flooding the surface of the device can be way pollutants into the reservoir through the overflow through a filter into the wash after tank for reuse.)

Heating system: the main channel heating power 12KW, the use of external heating, using a few explicit "OMRON" brand thermostat control device;
Attached to a storage tank (600 × 400 × 400 L × W × Hmm).
Filtration cycle system: filtering accuracy 20μ. Enable students to use in cleaning solution, reducing the waste caused by unnecessary, greatly reducing the use of cost! Using Southern brand stainless steel pumps, with level control.

When the liquid level is low, stop the pump / heater work and set the prompt light, and make a sound and light alarm
Reservoir heating power: 6KW heater stainless steel rod, with mechanical thermostat temperature control, RT30-110 ℃ adjustable.
Insulation devices: in vitro paste tank cleaning tank insulation cotton;
Reservoir full stainless steel structure (with stainless steel SUS 304/1.5) cotton outer insulation paste.

Nozzle design: before and after the spray form of four rows on each side designed to align the workpiece spray nozzle.

Control system: design liquid level controller, low water pressure water pump to protect the short open water pump power
Pump: The Southern brand stainless steel high-pressure pump.Ultrasonic stencil cleaning machines
