Koreanultrasonic vibrator machine
The company organized according to the latest international standard IEC61102 series of desktop production, single-slot, dual-slot, multi-slot, input type, split, and other digital, digital automatic ultrasonic cleaning machine. The key components are imported brands. The instrument has a novel structure, advanced circuits, reliable, high efficiency, low noise and cleanliness is high. The XC series produced by ultrasonic cleaning machine is mainly used in universities, research institutes, biochemistry, physics, chemistry, medicine and other laboratories for the extraction, emulsification, degassing, mixing, cell disruption purposes, and is widely used in machinery industry, medical industry, instruments and meters industry, electronic industry, mechanical and electrical, optical industry, semiconductor industry, watches jewelry, petroleum chemical industry, textile printing and dyeing industry, the cleaning surface treatment industry, to silicon, to rust, in addition to carbon. Ultrasonic frequency 25KHZ, 28KHZ, 40KHZ, 45KHZ, 60KHZ, 80KHZ and other multi-frequency, and according to user requirements of the industry of non-standard professional ultrasonic cleaning equipment. Can purchase according to user needs heating, power adjustment, dual-frequency, high frequency of different functionality.
The principle of ultrasonic vibrator machine
Ultrasonic cleaning machine works by using ultrasound propagation in a liquid medium produced by cavitation, the cavitation bubble burst in the closing process when the shock wave formed will produce thousands of air around the impact of pressure acting on the work surface the destruction of dirt and make them can not be quickly dispersed in the cleaning solution, clean the surface so as to achieve the effect, while the objects of material and accuracy are not affected.

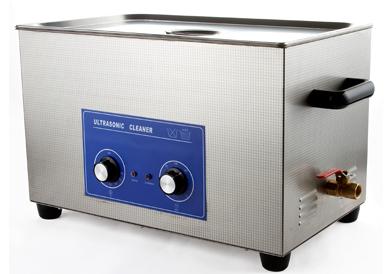

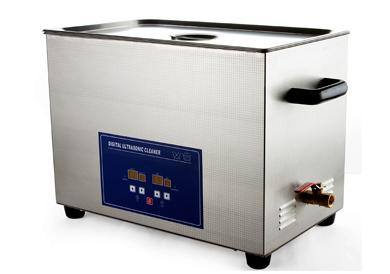

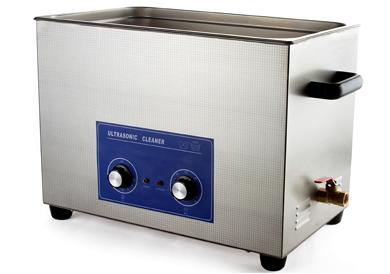

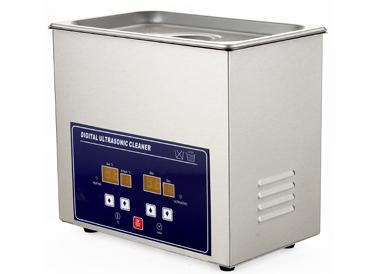

UCE Series Ultrasonic Cleaner
* Digital set ultrasonic cleaning time :1-99Min
* Real-time display tank liquid temperature (no heating)
* Equipment inside and outside the shell, lower lid tone, are of high quality stainless steel basket
* The use of SCM software operating procedures, operating parameters power and memory.
|
Model
|
capacity(L)
|
Internal size
L*W*H mm
|
Outsize mm
L*W*H mm
|
Frequency KHZ
|
Output
W
|
Digital timer
|
Heating
|
cover
|
|
UCE-0.7L
|
0.7
|
150*86*65
|
175*110*150
|
40
|
35
|
×
|
×
|
√
|
|
UCE-F-0.7L
|
0.7
|
150*86*65
|
175*110*170
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-1.3L
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-1.3
|
1.3
|
152*140*65
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
√
|
√
|
|
UCE-SF-2L
|
2
|
152*140*100
|
180*168*215
|
40
|
50
|
√
|
×
|
√
|
|
UCE-F-2.6L
|
2.6
|
152*140*150
|
180*168*265
|
40
|
50
|
√
|
√
|
√
|
|
UCE-F-3L
|
3
|
240*140*100
|
265*165*265
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-F-4.5L
|
4.5
|
240*140*150
|
265*165*315
|
40/28
|
100
|
√
|
√
|
√
|
|
UCE-6S-4.5L
|
4.5
|
302*152*100
|
330*180*265
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-6.5L
|
6.5
|
302*152*150
|
330*180*315
|
40/28
|
150
|
√
|
√
|
√
|
|
UCE-F-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE-F-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
200
|
√
|
√
|
√
|
|
UCE6SF-8L
|
8
|
325*265*100
|
353*293*265
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-12L
|
12
|
325*265*150
|
353*293*315
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE-16L
|
16
|
310*210*250
|
410*310*450
|
40/28
|
300
|
√
|
√
|
√
|
|
UCE8-24L
|
24
|
330*250*300
|
450*370*550
|
40/28
|
400
|
√
|
√
|
√
|
