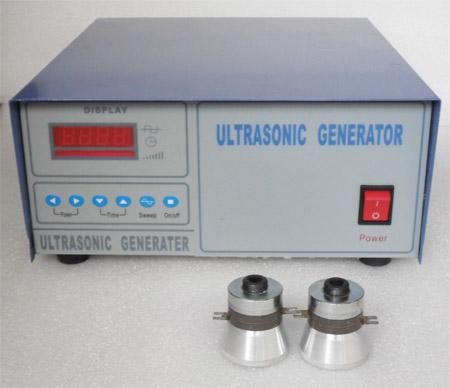

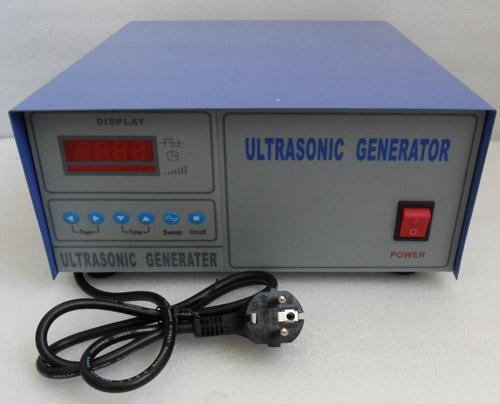

Ultrasonic Vibrator generator
Tim is a good digital ultrasonic generator letter to the company with advanced foreign technology independently developed unique manufacturing high-performance products, long-term use to prove, whether it is attached to a single cleaning tank of ultrasonic cleaning machines, vibration plate or large cleaning system, KAMSON series ultrasonic occur device can demonstrate efficient, stable, and easy operation.
1, refers to the third generation of FM:
Work in the ultrasonic control circuit, reference to international advanced ultrasound technology, after years of experiments and screening, developed the third generation of frequency control lines, and added the appropriate line in the second, third harmonic, so that the working status of ultrasonic oscillator more stable, line fault greatly reduced.
2, automatic tracking, locking frequency:
Vibration during the first work by the ambient temperature, component aging, vibration head working hours and many other factors, to promote the signal frequency and the resonant frequency will inevitably drift, while the head of each vibration parameters (frequency, distribution capacitors, etc.) have a certain error range. Changes in these parameters will cause the drive signal frequency and the resonant frequency of vibration head is inconsistent, although in the early use of the cleaning effect is not obvious, but long-term use, bound to the life of the first vibration, the whole great impact on the working status . Our view of this situation, the design of the automatic tracking and locking the frequency of lines, each 30S signal to track the work, each oscillator can operate in the resonant head.
3, the micro-rate soft-start function:
Boot, the line will promote the ultrasound signal amplitude from the low state of gradually increasing the height to normal working condition, to avoid the impact of current (inrush current is a current of 4 to 5 times), head of the impact of vibration, thus extending the vibration head of working life.
4, the modular design:
Taking into account the working environment of ultrasonic cleaning machines and maintenance, we will use ultrasonic generator part of the line epoxy encapsulated to avoid the harsh environment (such as high temperature, dust, acid gases) for the components of the erosion, while fast repair to reduce the impact of maintenance on the customer.
5, a variety of new technologies into the application:
Applied in the design of the machine a lot of new technologies (such as alternative power MOSFET transistor, replace the coil loop magnetic core coil, etc.), so that machine performance and stability has been greatly improved. Cleaning capacity can be increased above 20%.
Type |
Power(W) |
Frequency (KHz) |
UCE—UG300W |
300 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG500W |
500 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG600W |
600 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG900W |
900 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1000W |
1000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1200W |
1200 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1500W |
1500 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG1800W |
1800 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG2000W |
2000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
UCE—UG2400W |
2400 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
High Frequency |
500W-1200W |
65-80 |
High Frequency |
500W-1200W |
120-135 |
