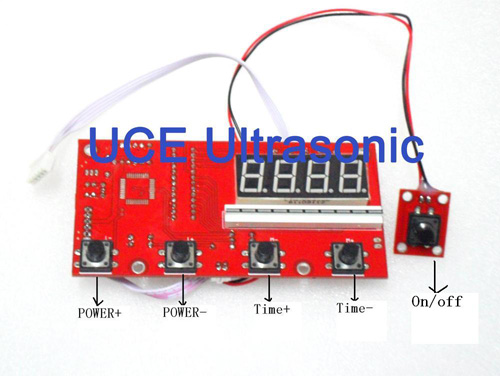

Ultrasonic Power PCB driver+display board

Ultrasonic Power PCB driver+display board
Ultrasonic Power PCB driver+display board
1) ASIC, the line is very concise, high reliability
2) power devices using imported module, less heat, low failure rate
3) the frequency continuously adjustable, continuously adjustable power adjustable time overcurrent short circuit protection, use convenient debugging.
4) the whole small size, light weight, easy to install and transport.
Ultrasonic Power PCB driver+display board

Type Power（W） Frequency (KHz)
UCE-PCB200W-TT 200 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-PCB300W-TT 300 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-PCB400W-TT 400 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-PCB500W-TT 500 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-PCB600W-TT 600 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

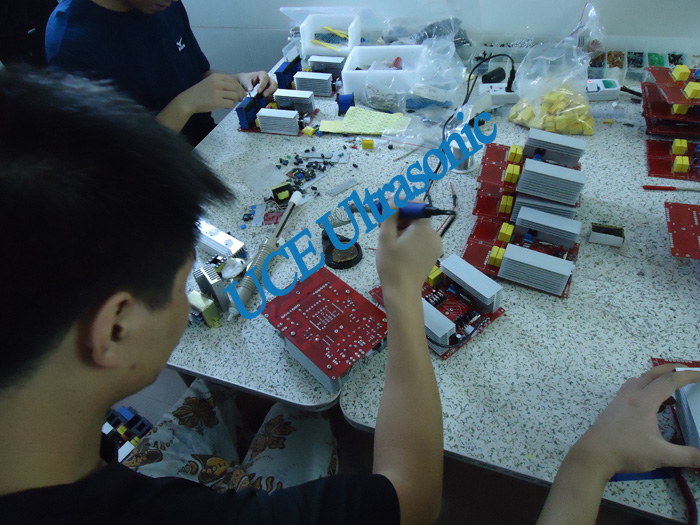

Ultrasonic pcb

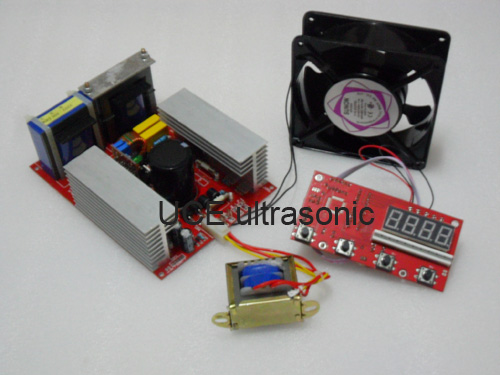

Ultrasonic Power PCB driver+display board Ultrasonic Power PCB driver+display board
Ultrasonic Power PCB driver+display board
