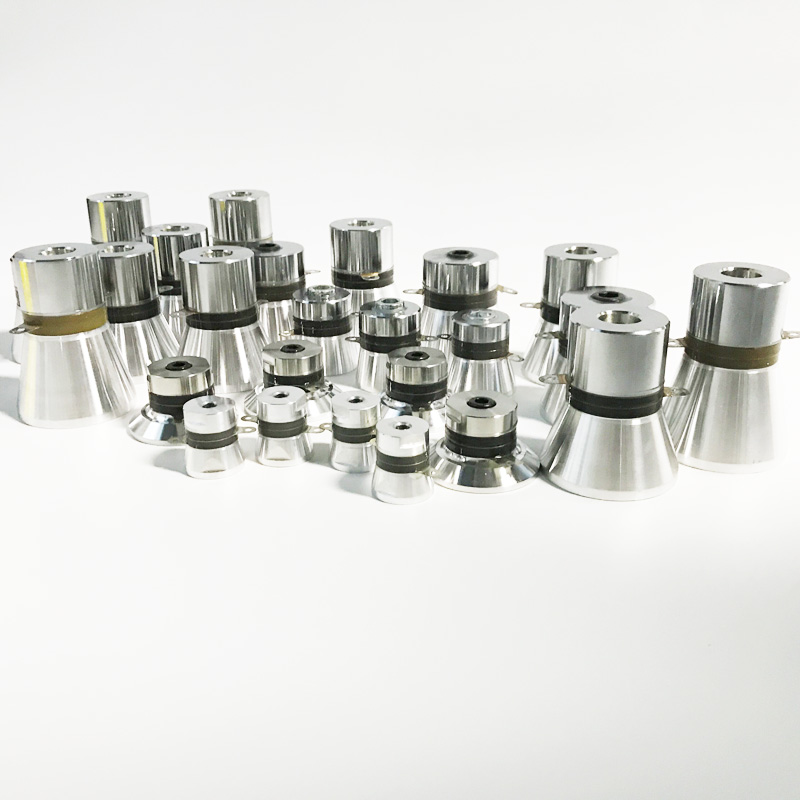

17khz ultrasonic transducer for Low frequency transducer

(1) Ultrasonic transducer: A device that converts high-frequency electrical energy into mechanical energy, generally magnetostrictive and piezoelectric ceramic. Power output to the ultrasonic generator, and then to the ultrasonic transducer, usually through the ultrasonic derivation, receiving device can produce ultrasonic.

(2) The ultrasonic transducer consists of a shell, a matching layer, i.e. an acoustic window, a piezoelectric ceramic disc transducer, a backing and an extraction cable. The ultrasonic transducer is characterized in that it also includes an array receiver, which is composed of an extraction cable, a transducer, a metal ring and a rubber washer.

(3) Principle and function of ultrasonic transducer: ultrasonic transducer is piezoelectric ceramics resonating in ultrasonic frequency, which converts electrical signal into mechanical vibration by piezoelectric effect of material. Go to a part of the power that it consumes very little. Ultrasonic transducers can be divided into piezoelectric transducers, sandwich transducers, cylindrical transducers, inverted horn transducers and so on.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
