175khz ultrasonic transducer for piezo transducer

Ultrasonic vibrator features:



      1. High performance: high mechanical Q value, high conversion efficiency and excellent quality;



 2. Ultrasonic vibrator transducer with large amplitude and superior performance;

 3. Ultrasonic vibrator transducer, heat resistance: Piezoelectric ceramic material has good heat resistance.



The operating temperature range can be expanded, and the Q value is high, the resonance impedance is small, and the heat generation amount is small;

 4. Ultrasonic vibrator transducer The product has a neat appearance, no rust, no obvious dents and scratches.



 The principle of ultrasonic vibrator arrangement:



  1. Cleaning different product layouts have different requirements, such as the degree of oil staining of the product, the difficulty of cleaning, the level of cleaning requirements, and the design of the cleaning process, all require targeted selection.



  2, the vibrator arrangement is not the more the more dense the better, the right is the best.

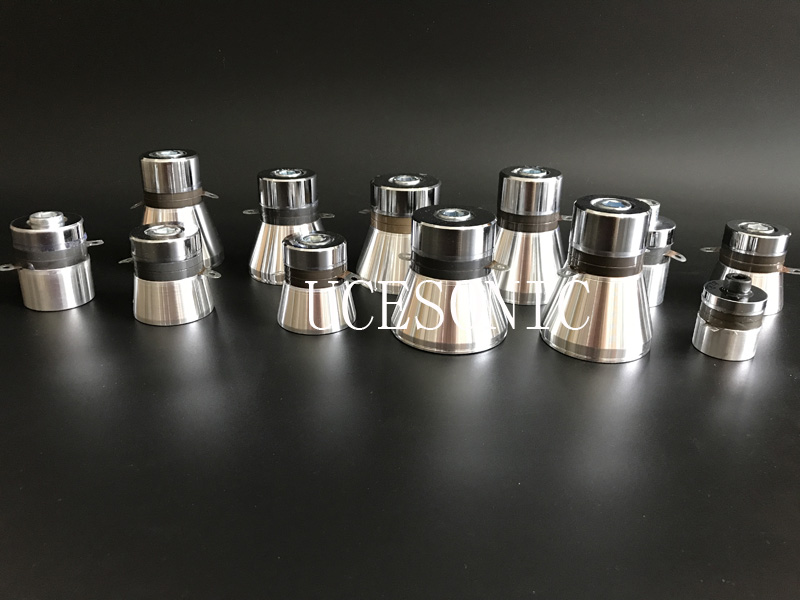

Introduction to Ultrasonic Oscillator:



The ultrasonic vibrator, also called the ultrasonic vibrating head, is an ultrasonic transducer and is a core component of the ultrasonic cleaning machine. Industry standard name: Ultrasonic transducer, which belongs to piezoelectric ceramic material and one of the main accessories of ultrasonic cleaning machine. From the power point, a single ultrasonic head is 60W, 100W. The frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher; the difference in shape is: straight cylindrical, trumpet,



The high-frequency oscillating signal emitted by the ultrasonic generator on the principle of the ultrasonic cleaning machine is converted into a high-frequency mechanical oscillation by the transducer and propagated into the medium--cleaning solvent, and the ultrasonic waves are radiated in the cleaning liquid in a dense manner. The liquid flows to generate tens of thousands of tiny bubbles having a diameter of 50-500 μm, and the tiny bubbles existing in the liquid vibrate under the action of the sound field. These bubbles form and grow in the negative pressure region in which the ultrasonic waves propagate longitudinally, and in the positive pressure region, when the sound pressure reaches a certain value, the bubbles rapidly increase and then suddenly close. And when the bubble is closed, a shock wave is generated, thousands of atmospheric pressures are generated around it, and the insoluble dirt is destroyed to disperse them in the cleaning liquid. When the group particles are wrapped by the oil and adhere to the surface of the cleaning member, the oil is emulsified, and the solid is solid. Particles and detachment, so as to achieve the purpose of cleaning the cleaning parts. In this process known as the "cavitation" effect, the bubble closure can form a high temperature of several hundred degrees and an instantaneous high pressure of more than 1000 atmospheres.



The advantages of the ultrasonic cleaning machine are: the ultrasonic cleaning effect is good, and the operation is simple. The sound that people hear is an acoustic signal with a frequency of 20-20000 Hz. The sound wave higher than 20000 Hz is called ultrasonic wave, and the transmission of sound wave propagates longitudinally according to the sinusoidal curve, generating a large number of small bubbles. One reason is that a tensile stress is locally generated in the liquid to form a negative pressure. The decrease in pressure causes the gas originally dissolved in the liquid to be supersaturated, and escapes from the liquid to become small bubbles; another reason is that the strong tensile stress tears the liquid apart. "Become a hollow, called cavitation.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
