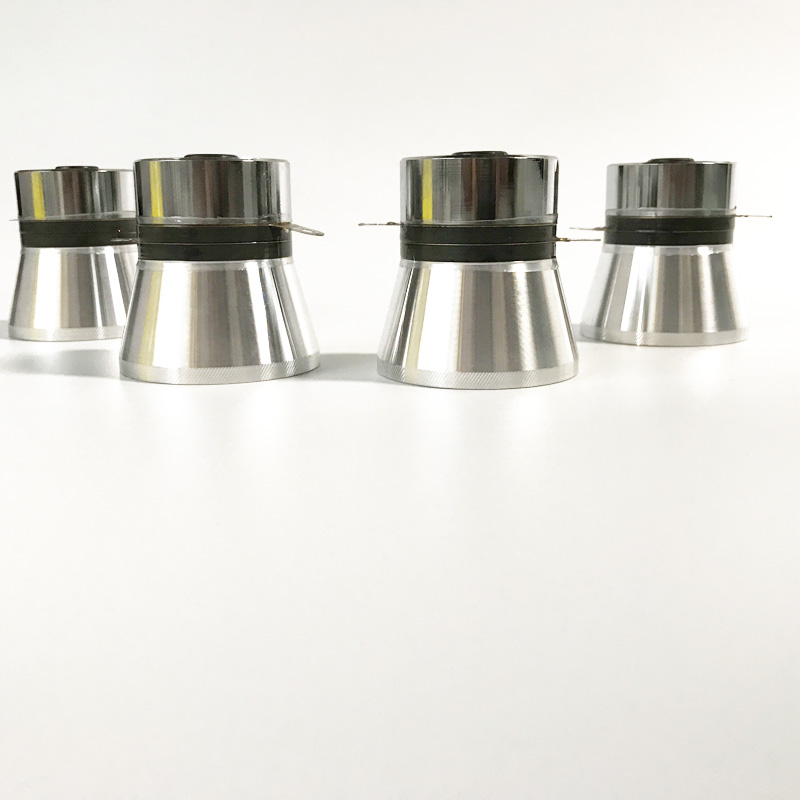

80khz ultrasonic transducer for ultrasonic piezo transducer

Ultrasonic transducers can be used for cleaning transducers: piezoelectric ceramic converters, which convert high-frequency sinusoidal voltage signals into high-frequency mechanical vibration signals, mounted on the bottom or side walls of the cleaning tank, transmitted through the tank and used in cleaning media, and the vibration signals of the transducers are converted into cavitation signals to attach objects. Quick stripping to achieve the purpose of cleaning.



The transducer produced by our company has low heating, good thermal stability, small resonance impedance, good frequency and static capacitance consistency, frequency and impedance waveform integrity, smooth, can be customized for various types of cleaning transducer.



Our annual spot supply frequency 17KMZ/20KMZ/22KMZ/25KMZ/28KMZ/33KMZ/40KMZ/53KMZ/60KMZ/80KMZ/100KMZ/120KMZ/200KMZ cleaning transducers.



Frequency Selection Reference: Low frequency (17-50KMZ) is suitable for large parts or high bonding strength between dirt and the surface of cleaning parts. High frequency ultrasonic (50-200KMZ) is suitable for cleaning precision parts. In order to achieve ideal cleaning effect, low frequency and high frequency can be selected simultaneously.



Washing transducer is used in dishwasher industry, mining industry, electroplating industry, hardware cleaning industry, solar photovoltaic industry, semiconductor industry, integrated circuit industry, optical industry, etc.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
