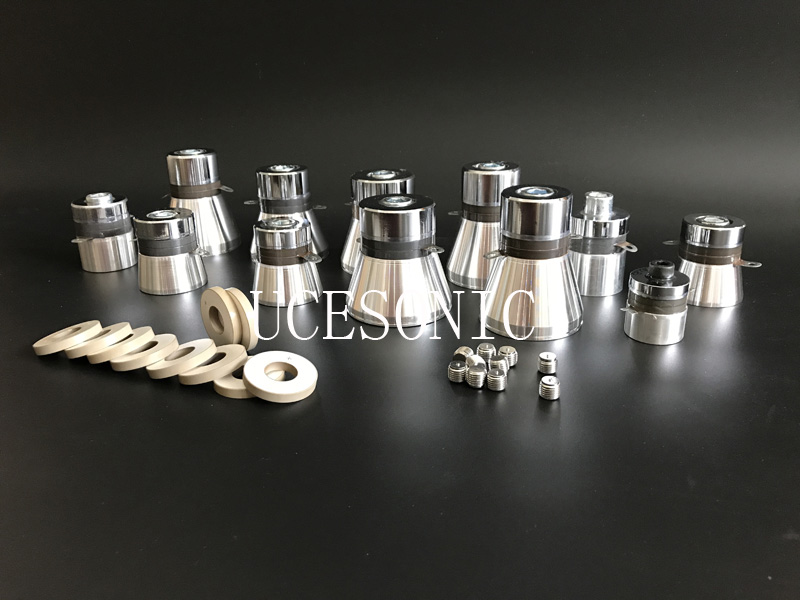

90khz ultrasonic transducer high frequency ultrasonic transducer

Ultrasonic vibrator, also known as ultrasonic vibration head, ultrasonic vibration head, is an ultrasonic transducer.

Based on the consideration of serving customers and improving product quality and reliability, we can provide customers with a complete set of services, such as ultrasonic transducer (that is, transducer with horn) and ultrasonic vibrator glue, ultrasonic generator, assembly shell, wiring, plug and so on, to reduce unnecessary labor for customers to a large extent.

At the same time, through professional production, strict quality inspection, and long-term use of experience, product quality has been better guaranteed. All products are guaranteed in March and guaranteed for one year.

Characteristics of ultrasonic transducers:

1, high performance: high mechanical Q value, high conversion efficiency and excellent quality.

2, the ultrasonic transducer has large amplitude and excellent performance.

3. Heat resistance of ultrasonic vibrator transducer: piezoelectric ceramic material has good heat resistance, can expand the temperature range, at the same time, Q value is high, resonance impedance is small, calorific value is small;

4. The ultrasonic transducer transducer has a neat appearance, no rust, no obvious dents and scratches.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
