elma ultrasonic cleaning transducer 28khz/40khz

Ultrasonic transducer is one of the most important components in ultrasonic cleaning machine and ultrasonic vibration plate, which largely determines the quality of ultrasonic effect. The ultrasonic transducer provided by Shenzhen List Ultrasonic Equipment Co., Ltd. is a professional ultrasonic transducer with stable quality, high efficiency output and moderate price, which is based on many years of ultrasonic cleaning experience, combined with the opinions and feedback of users.

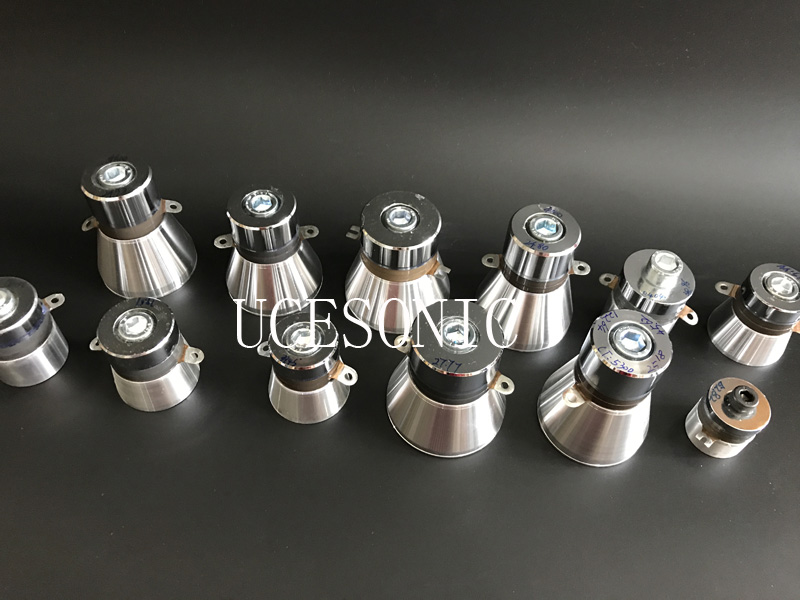

Ultrasonic transducer is a kind of device that converts high frequency electric energy into mechanical vibration. The high frequency electric energy input by ultrasonic generator matches the piezoelectric ceramic sheet which resonates with the ultrasonic transducer. In the water medium, negative pressure bubbles and shock waves are formed in the water and transmitted in the tax-based solution to achieve the effect of cleaning the surface stains of the workpiece. The transducer is mainly composed of aluminum block, piezoelectric ceramic plate and insulation layer.

Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
