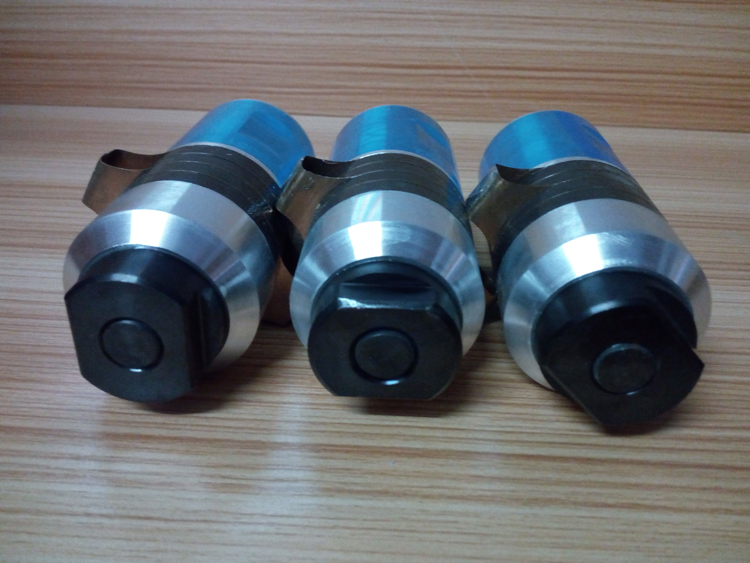

Ultrasonic welding transducer:
Ultrasonic amplitude transformer, as the name implies, can change the amplitude of transducer. The horn is a passive device, it does not produce vibration itself, only changes the amplitude of the input vibration and then transmits it out, but also completes the impedance transformation. Ultrasound transducer can produce regular vibration under suitable electric field excitation. Its amplitude is generally about 10 micron. It is not enough to complete welding and processing directly. The amplitude of the ultrasonic wave can be changed in a large range after connecting the horn with a reasonable design. As long as the material strength is enough, the amplitude can exceed 100 micron. We call the vibrator the whole ultrasonic transducer connected to the horn. On the other hand, when the horn vibrates lengthwise, the motion direction of the particles on the left and right sides of a cross-section is just opposite, which is equivalent to the existence of a relatively static joint. This joint surface is called the node, here is also the best fixed point of the oscillator, deviating from the node fixed will reduce the efficiency of the oscillator, commonly known as leakage wave. Generally speaking, aluminum horn has high acoustic transmission efficiency, but the material strength is low, easy to crack and screw hole sliding wire; steel horn has high strength, but the acoustic impedance is relatively large; titanium alloy horn has good comprehensive performance, but the disadvantages are high price and difficult processing.
Based on the consideration of serving customers and improving product quality and reliability, we can provide customers with a complete set of services, such as vibrator (transducer with horn) and assembly shell, wiring, plug and so on, to minimize unnecessary labor for customers. At the same time, through professional production and strict quality inspection, the quality of products is guaranteed more favorably.
Type Full-length(mm) Joint Bolt(mm) Frequency(KHz)

Resonance Impedance(Ω)

Capacity(pF)

Input Power
(W)
UCE-UWT152500 P8

153

M20×1.5

15

15

13000

2500

UCE-UWT152000 P8

167

M20×1.5

15

10

9500

2000

UCE-UWT151500 P4

171

M18×1.5

15

12

12500

1500

UCE-UWT151800 P4

118

M20×1.5

20

15

15000

1800

UCE-UWT202000 P8

128

M18×1

20

10

11000

2000

UCE-UWT202000 P8

124

M18×1.5

20

12

10000

1500

UCE-UWT20700 P8

112

1/2-20 UNF

20

15

9000

700

UCE-UWT20900 P8

133

1/2-20 UNF

20

15

10000

900

UCE-UWT20600 P8

121

M18×1.5

20

15

6000

600

UCE-UWT30500 P8

77

M10×1.5

30

5

5500

500

UCE-UWT28200 P4

92.1

M10×1

28

20

3000

200

UCE-UWT28100 P8

91

M8×1

28

25

2200

100

UCE-UWT28250 P8

94

1/2-20 UNF

28

20

4000

250

UCE-UWT202000 P8

128

1/2-20 UNF

20

10

20000

2000

UCE-UWT201500 P8

124

1/2-20 UNF

20

10

16000

1500

UCE-UWT201300 P8

128

1/2-20 UNF

20

10

12500

1300

UCE-UWT201500 P8

132

1/2-20 UNF

20

10

11000

1500

UCE-UWT20900 P8

123

1/2-20 UNF

20

10

9500

900

UCE-UWT152000 P4

171

M18×1.5

15

12

10000

2000

UCE-UWT35100 P8

71

M8×1

35

25

2200

100

UCE-UWT38100 P8

66

M8×1.25

38

40

1200

100

UCE-UWT38200 P4

65

M8×1

38

14

3300

200
