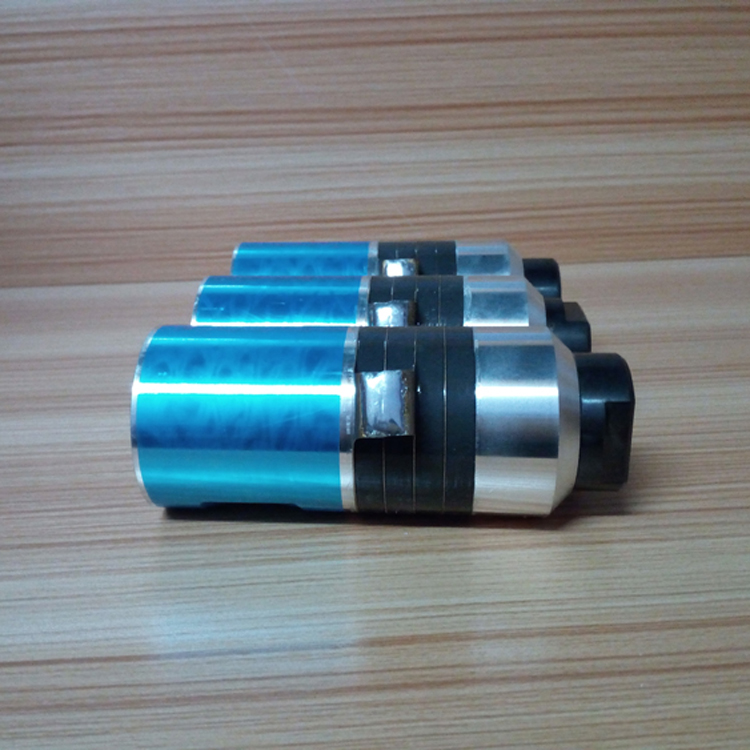

solid mount ultrasonic welding transducer 15khz/20khz/40khz

Application Principle of Ultrasound in Plastic Processing: Ultrasound used in plastic processing, the existing several working frequencies are 15KHZ, 18KHZ, 20KHZ, 40KHZ. The principle is to use the wave peak position of longitudinal wave to transmit amplitude to the gap of plastic parts, under pressure, so that two plastic parts or other parts and plastic parts of the molecules in contact with each other. The melt is melted and the contact plastic is melted to achieve the purpose of processing.


Ultrasound welding transducer aims at ultrasonic machining of thermoplastic adhesive. It uses high frequency friction between working joints to produce heat rapidly. When the heat is enough to melt, the ultrasonic vibration is stopped. At this time, the working joints are melted and solidified to complete the processing procedure. Usually used in plastic processing frequencies of 20KHZ and 15KHZ, its frequency is outside the human hearing, so called ultrasonic. Ultrasound welding machine should be used in electronics, stationery, traffic equipment, toys, cosmetics, electrical machinery and other PP, PE, ABS, acrylic and other materials. The 15KHz ultrasonic plastic welding machine has its unique advantages in welding soft PE and PP materials as well as plastic welding parts with large diameter and long length. It can meet the needs of various products and contribute to the improvement of production efficiency and product grade for all users. Products: 1, plastic toys, water guns, aquarium games, children's dolls, plastic gifts, etc. 2, electronic products: recording, tape cassettes and mandrels, disk shells, mobile phone battery panels and rectifier transformers, switch sockets, remote control, electronic mosquito racket, counterfeit bottle caps, etc. 3. Household appliances: electronic clock, electric drum, steam iron water tank, electric kettle gas, computer, etc. 4. Stationery and daily necessities: stationery boxes, aquarium rulers, folder seams and shells, penholders, cosmetics box shells, toothpaste tube tail sealing, cosmetic glasses, thermos cups, lighters, condiment bottles and other sealed containers. 5, automobiles, motorcycles: batteries, headlights, rear lights, meters, reflectors and so on.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
