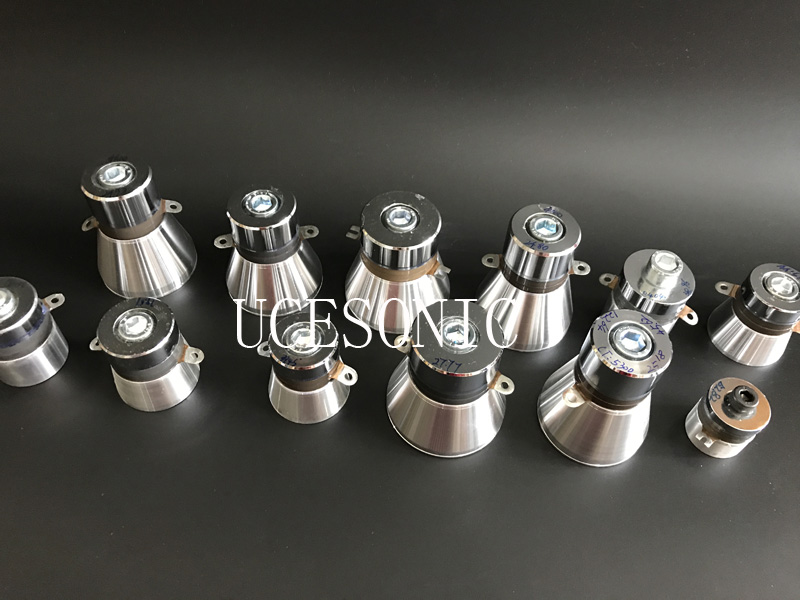

pzt-4/pzt-8 ultrasonic cleaning transducer 28khz/40khz

5Ultrasonic oscillator principle:



Piezoelectric transducer is composed of radiator, electrode plate, back metal cover, pre-stressed screw (screw), piezoelectric chip and insulating tube. It is widely used in ultrasonic cleaning machine and industrial high-power cleaning equipment. The company upholds the principle of quality assurance, integrity first, so that customers can use products at ease, product value-added.

Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
