ultrasonic transducer for cleaning tank 28khz/40khz

Neutral, alkaline or weak acid for ultrasonic cleaning machine.

Water based solution is a cleaning agent with low cost and good cleaning effect.

Scope of application: electronic parts, electroplating parts, hardware, timepieces, spectacles frames,

Lenses, jewelry, semiconductor wafers, spinneret, filter cartridge,

Cleaning of glassware and so on.

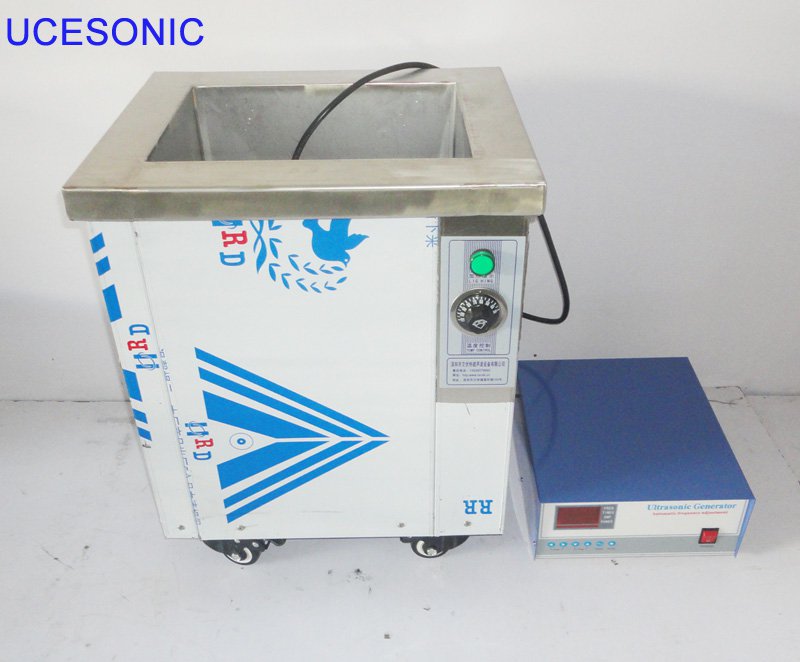

The whole machine features:

All stainless steel structure, acid and alkali resistance, long service life.

Automatic temperature control system (adjustable at 30~100 C).

Adopting high "Q" value transducer and advanced bonding process, energy conversion is high.

IGBT power supply has unique sweep function, overcurrent, over temperature protection and adjustable power.

It is small in size, light in weight and easy to operate. It can work continuously for 24 hours, and its performance is stable and reliable.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)	Total power(W)	voltage
UCE-1006ST	280×210×210	320×250×350	20,28,33,40,80,130	300	1000	1300	220V
UCE-1012ST	400×310×280	520×430×600	20,28,33,40,80,130	600	3000	3600	220V
UCE-1018ST	490×360×320	610×480×675	20,28,33,40,80,130	900	3000	3900	220V
UCE-1024ST	630×430×320	740×550×675	20,28,33,40,80,130	1200	4000	5200	220V
UCE-1030ST	630×530×320	750×650×675	20,28,33,40,80,130	1500	4000	5500	220V
UCE-1036ST	680×530×360	800×650×700	20,28,33,40,80,130	1800	5000	6800	220V
UCE-1040ST	680×570×400	830×710×735	20,28,33,40,80,130	2000	5000	7000	220V
UCE-1041ST	730×570×450	880×710×735	20,28,33,40,80,130	2400	6000	8400	220V
UCE-1042ST	790×670×510	940×765×785	20,28,33,40,80,130	3000	6000	9000	380V
UCE-1043ST	850×770×570	990×820×785	20,28,33,40,80,130	4000	7000	11000	380V
UCE-1044ST	910×820×620	1050×880×840	20,28,33,40,80,130	5000	7000	12000	380V
UCE-1045ST	960×870×680	1100×940×920	20,28,33,40,80,130	8000	8000	16000	380V
UCE-1046ST	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	8000	18000	380V
OEM Ultrasonic Cleaning Mchine（Size, Frequency,Power）-----UCE ultrasonic

ultrasonic transducer for cleaning tank 28khz/40khz
