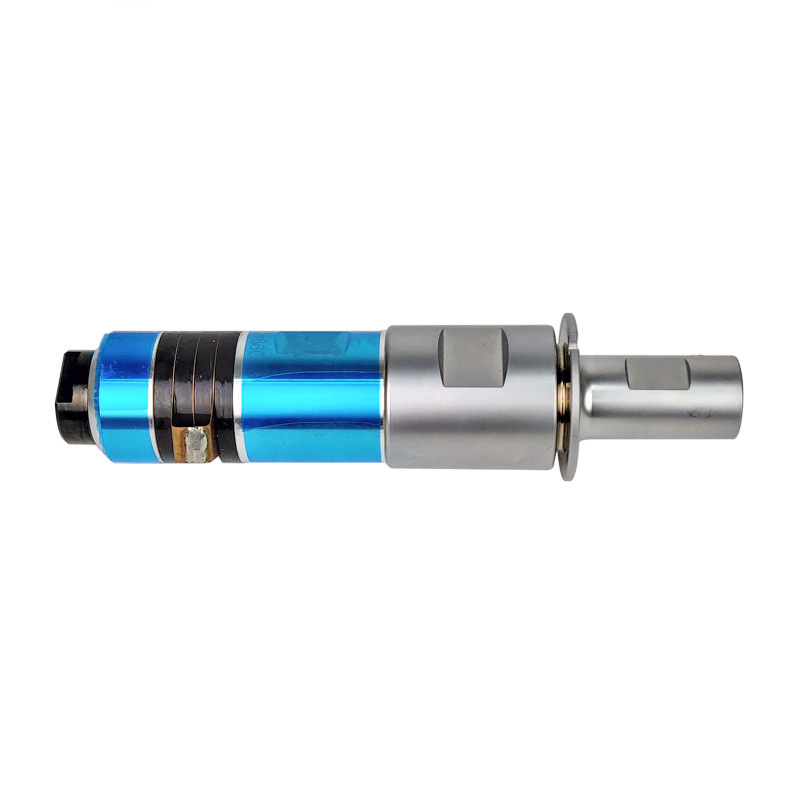

ultrasonic welding piezoelectric transducer 15khz/20khz

Transducer is the core device of ultrasonic, and its characteristic parameters determine the performance of the whole equipment. It is the transformation of high-frequency electric energy into mechanical vibration through transducers. The characteristics of the transducer depend on the material selection and manufacturing process. The performance and service life of the transducer with the same size and shape are very different.

The current production of 15KHz 20KHz 28KHz 35KHz 40KHz and other products can also be designed and manufactured according to the special requirements of customers non-standard ultrasonic welding transducer to meet various needs.

Ultrasound welding head should keep a symmetrical design as far as possible in order to avoid the unbalanced stress and transverse vibration caused by the asymmetrical transmission of sound wave. Causes the welding head to generate heat and fracture. Ultrasound welding is used in different industries to meet different requirements for machining accuracy. For very thin workpieces such as lithium-ion battery electrode plate and ear welding, gold foil coating and so on, the machining accuracy requirements are very high. All our processing equipment are using numerical control equipment (such as machining center), so as to ensure processing. The accuracy meets the requirements.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
