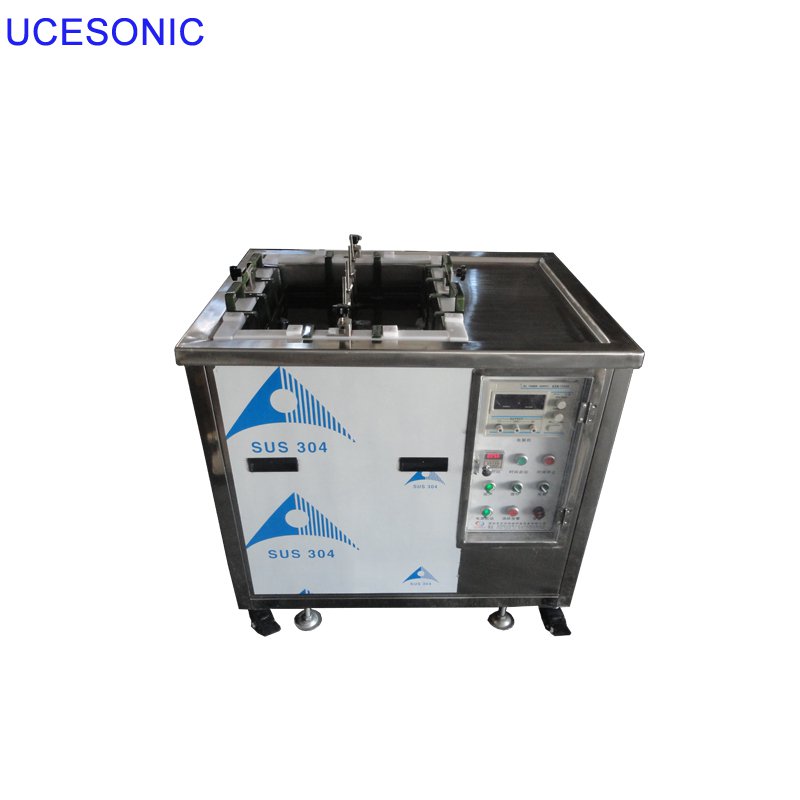

28khz/40khz Rubber mold ultrasonic cleaning machine

2020-02-07 18:22 admin
28khz/40khz Rubber mold ultrasonic cleaning machine
Principle of electrolytic mold cleaning machine: electrolysis is a process of chemical decomposition of substances under the action of current. In the process of electrolysis, the dirt on the metal surface begins to fall off, which accelerates the peeling under the impact of ultrasound. The metal surface is stained with animal and vegetable oil, mineral oil, paraffin, carbon deposit and oxide layer. These dirt are removed by electrolysis. When the current passes through the mold electrolytic cleaning agent with special formula, oxygen is generated near the positive pole of the electrolytic cell, and hydrogen is generated from the negative pole. Put the metal parts to be cleaned into the positive pole of the electrolytic cell, during the electrolysis process, there will be small hydrogen on the metal surface, and these small bubbles will promote the dirt to peel off from the metal surface. Ultrasonic cleaning uses the high-frequency power supply of 40KHz to make the transducer powered by electricity In the process of converting mechanical energy, the transducer transfers huge energy to the cleaning tank solution, generates positive pressure and negative pressure areas in the liquid, forms tens of thousands of cavity bubbles, and constantly forms explosions, impacts the cleaned metal surface, and makes the dirt on the metal surface separate quickly, so as to achieve the cleaning of the mold and restore the true color of the mold
Type Frequency (Khz) Power(W) Capacity(L)
UCE-30LTT 28KHZ,40KHZ 1500 30
UCE-50LTT 28KHZ,40KHZ 2500 50
UCE-70LTT 28KHZ,40KHZ 3500 70
28khz/40khz Rubber mold ultrasonic cleaning machine
28khz/40khz Rubber mold ultrasonic cleaning machine

28khz/40khz Rubber mold ultrasonic cleaning machine
