Ultrasonic Cleaning Options for Plastic Injection Molds 40khz

Ultrasonic cleaning is a process of converting electrical energy into mechanical energy by using 40KHz high-frequency power supply. In this process, the transducer transfers huge energy to the cleaning tank solution, generates positive pressure and negative pressure areas in the liquid, forms tens of thousands of cavity bubbles, constantly forms explosions, impacts the cleaned metal surface, and quickly separates the dirt on the metal surface.

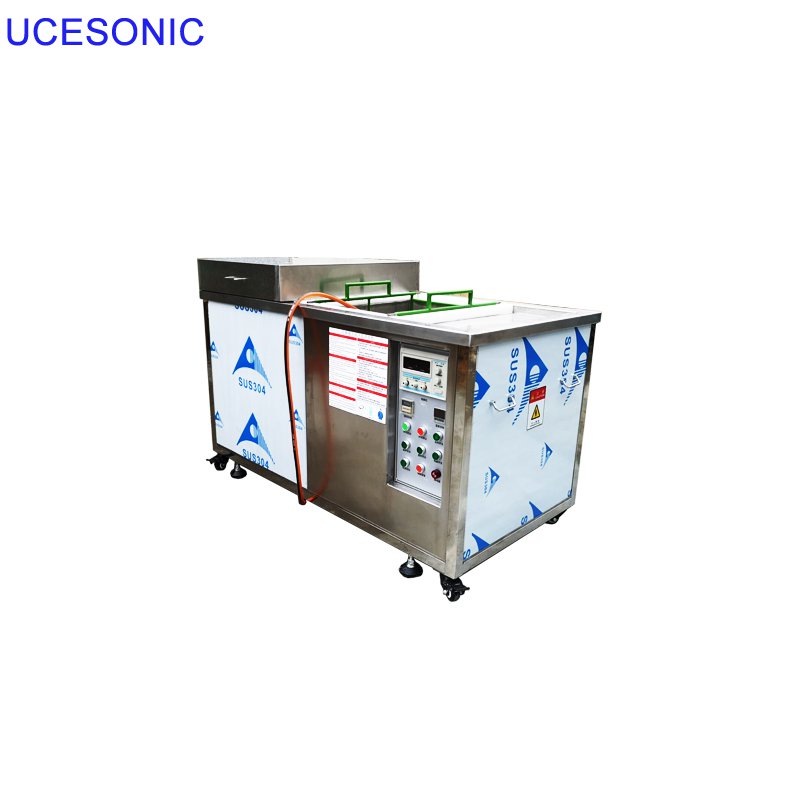

1: Cleaning process description of electrolytic ultrasonic (plastic mold) cleaning machine

Electrolytic ultrasonic system is composed of ultrasonic generation system, electrolytic circuit system, circulating filtration system, control system, special gold cleaning fluid and water-based rust inhibitor.

2: Equipment usage: used for cleaning precision plastic mold, hardware, module, module, mold core, pin inlay, insert decontamination, high temperature carbon deposition, sulfide removal, gas, oil removal and rust removal.



3. The circulation system is made up of corrosion-resistant U.S. little giant magnetic pump, and the filter is composed of self circulation, so that the dirt falling from cleaning can be quickly isolated by the filter cotton core, reducing the floating objects on the liquid surface, and accelerating the electrolysis of the solution. Purify the solution and improve the utilization rate of the solution.

Type	Frequency (Khz)	Power(W)	Capacity(L)
UCE-30LTT	28KHZ,40KHZ	1500	30
UCE-50LTT	28KHZ,40KHZ	2500	50
UCE-70LTT	28KHZ,40KHZ	3500	70
