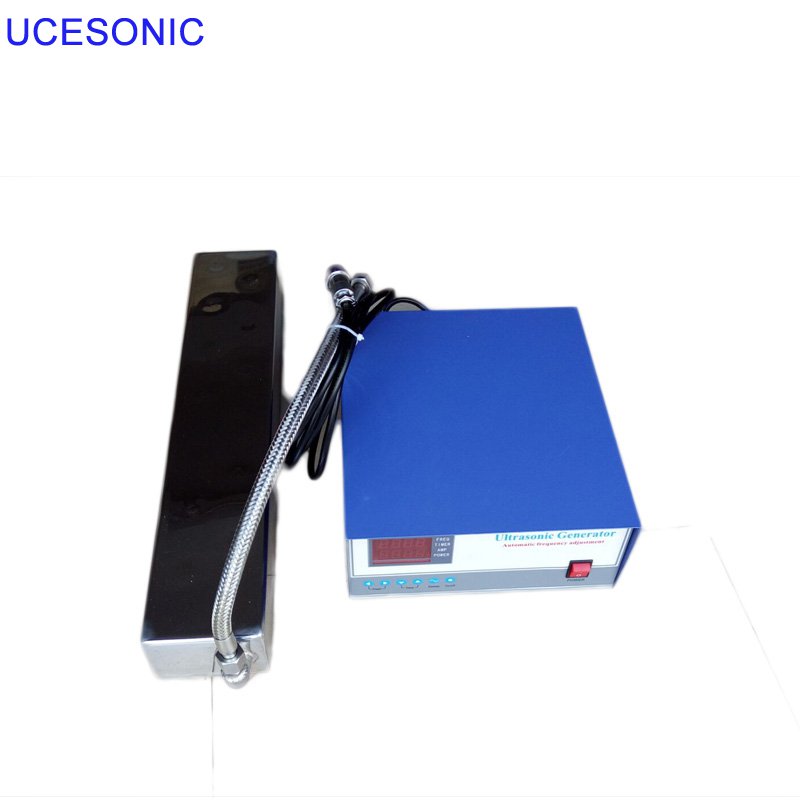

Submersible Type Ultrasonic Cleaning Transducer 1200W/28khz

2019-06-24 13:32 admin
Submersible Type Ultrasonic Cleaning Transducer 1200W/28khz
Characteristics of ultrasonic shock plate:
Compared with the traditional self-excitation control technology, the ultrasonic vibration plate is driven by the international advanced digital pulse mode. It has the advantages of small size, light weight, strong power, stable and reliable operation, continuous adjustable power, flexible control and so on. It has been recognized by many experts. The automatic frequency tracking of the ultrasonic cleaner ensures that the machine is in the best working state from beginning to end, and can maximize the potential of the ultrasonic transducer. It also has perfect protection functions, such as over-current protection, over-heat protection and output short circuit protection. Real-time digital display, working frequency and ultrasonic output power more intuitive. It is equipped with remote control port, which can be easily used in automatic production line.
Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
UCE-UITP300W 300*190*100 25,28,33,40,80,130 300 6
UCE-UITP600W 360*275*100 25,28,33,40,80,130 600 12
UCE-UITP1000W 450*350*100 25,28,33,40,80,130 1000 20
UCE-UITP1200W 470*380*100 25,28,33,40,80,130 1200 24
UCE-UITP1500W 520*450*100 25,28,33,40,80,130 1500 30
UCE-UITP1800W 560*450*100 25,28,33,40,80,130 1800 36
UCE-UITP2000W 650*450*100 25,28,33,40,80,130 2000 40
UCE-UITP2400W 740*520*100 25,28,33,40,80,130 2400 48
UCE-UITP3000W 820*540*100 25,28,33,40,80,130 3000 60
UCE-UITP5000W 1200*590*100 25,28,33,40,80,130 5000 100
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)
Submersible Type Ultrasonic Cleaning Transducer 1200W/28khz

Submersible Type Ultrasonic Cleaning Transducer 1200W/28khz
