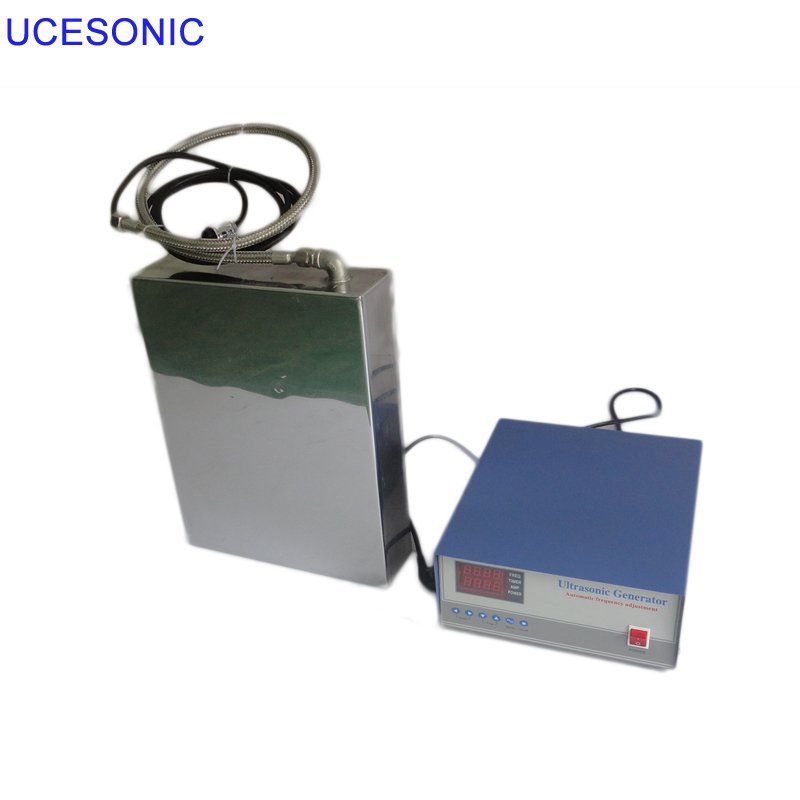

customized submersible ultrasonic transducer 28khz/40khz

customized submersible ultrasonic transducer 28khz/40khz
The application principle of ultrasonic vibration plate is that the high frequency oscillation signal from the ultrasonic generator is converted into high frequency mechanical oscillation by transducer and transmitted to the medium. The forward radiation of the ultrasonic wave in the cleaning solvent in the dense phase makes the liquid flow and produce tens of thousands of tiny bubbles, which exist in the liquid. Bubbles (cavitating nuclei) vibrate under the action of sound field. When the sound pressure reaches a certain value, bubbles grow rapidly, then close suddenly. When the bubbles close, shock waves are generated, and thousands of atmospheric pressures are generated around the bubbles, which destroy insoluble contaminants and disperse them in the cleaning solution. When the group particles are bound by oil contamination, they adhere to each other. When cleaning the surface of the parts, the oil is emulsified and the solid particles are separated, so as to achieve the purpose of cleaning the surface of the parts.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
UCE-UITP300W	300*190*100	25,28,33,40,80,130	300	6
UCE-UITP600W	360*275*100	25,28,33,40,80,130	600	12
UCE-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
UCE-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
UCE-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
UCE-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
UCE-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
UCE-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
UCE-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
UCE-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
